STM32F4VE DS18B20 ili9325 CubeMX Keil
Для создания программы вывода на LCD ili9325 воспользуемся CubeMX как генератором начального кода, а далее перейдем в Keil и запишем программу в микроконтроллер STM32F407VE.
Приступим..
Запускам ранее установленный CubeMx
Выбираем

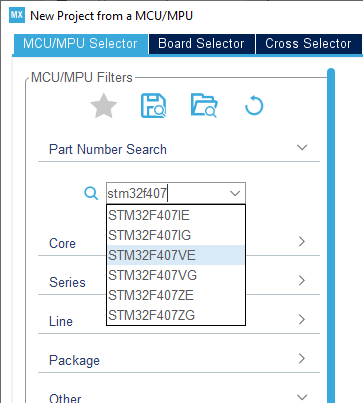

В окне которое откроется после выбора выбираем микроконтроллер STM32F407VE
После выбора и нажатия ENTER

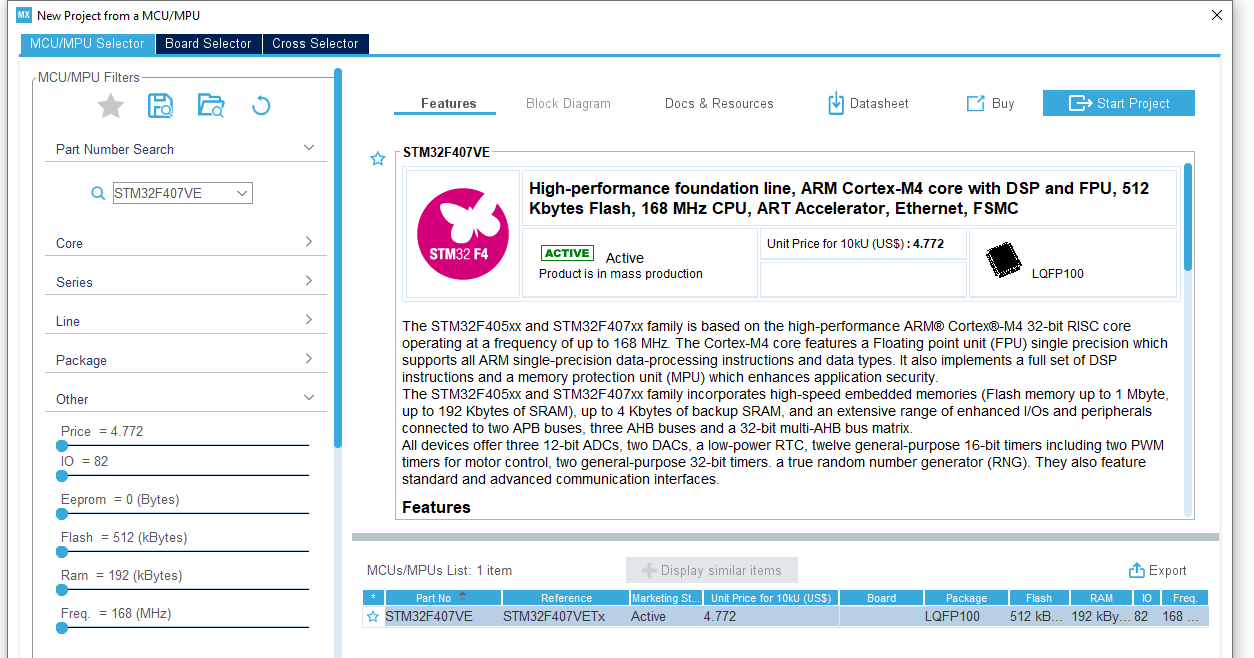

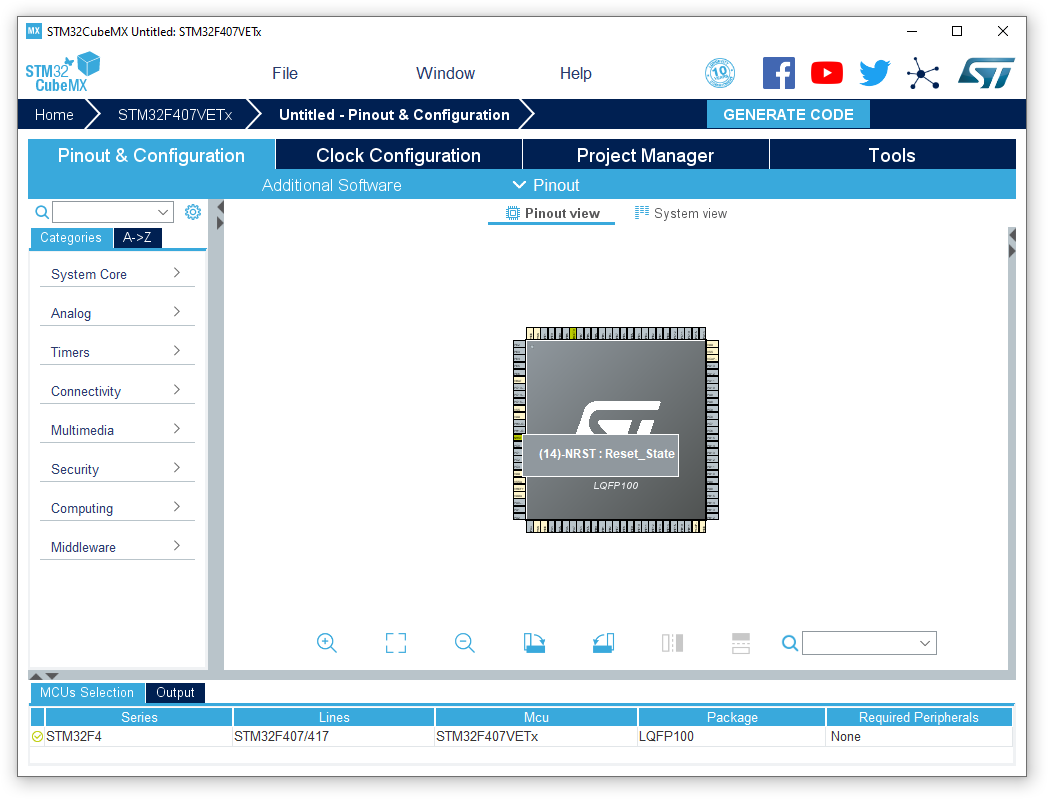

Открывается окно с найденными микросхемами 4 серии

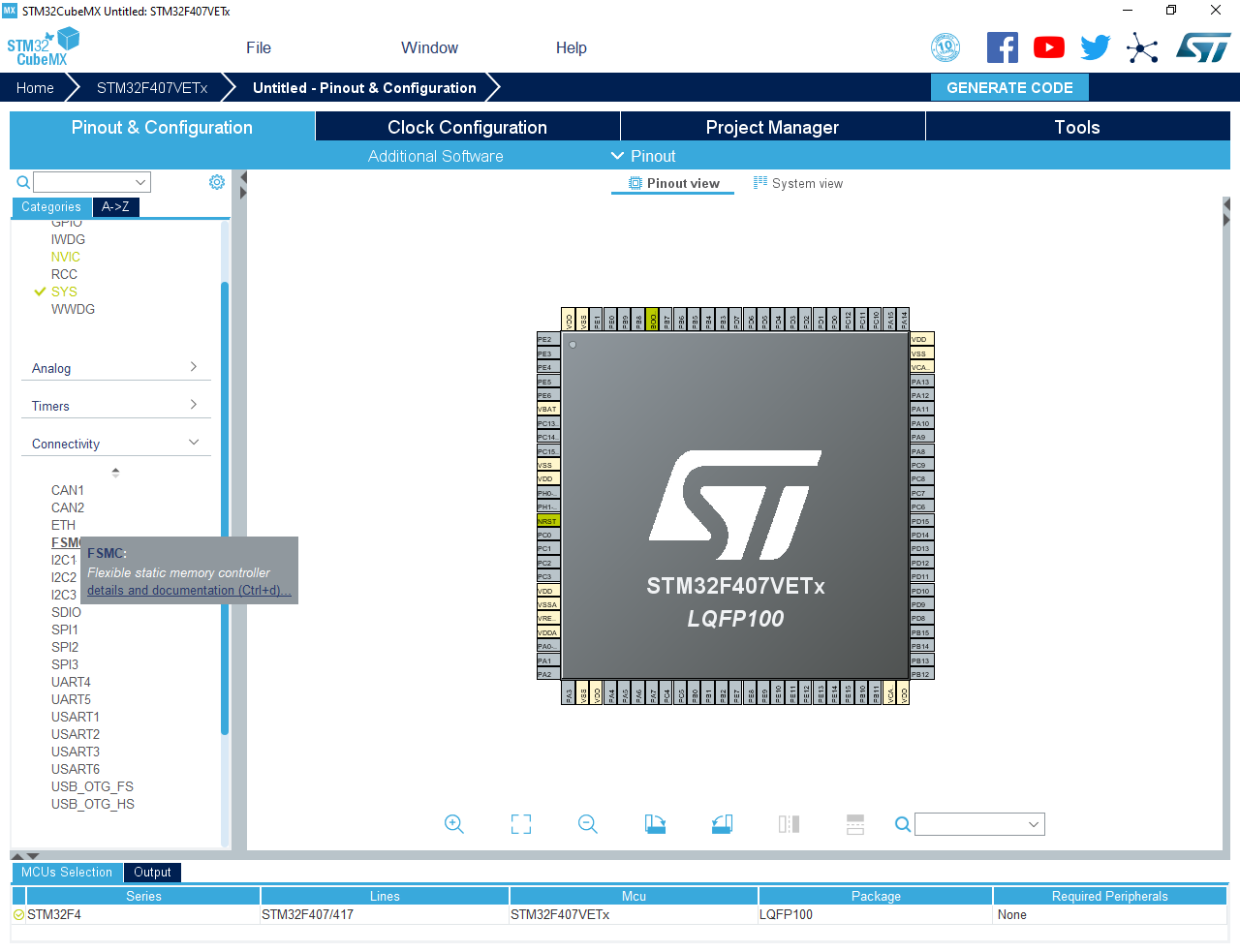

Выбираем его мышкой и нажав два раза попадаем в окно с конфигурацией
Начинаем назначать выводы микросхемы и конечно с самого главного - FSMC

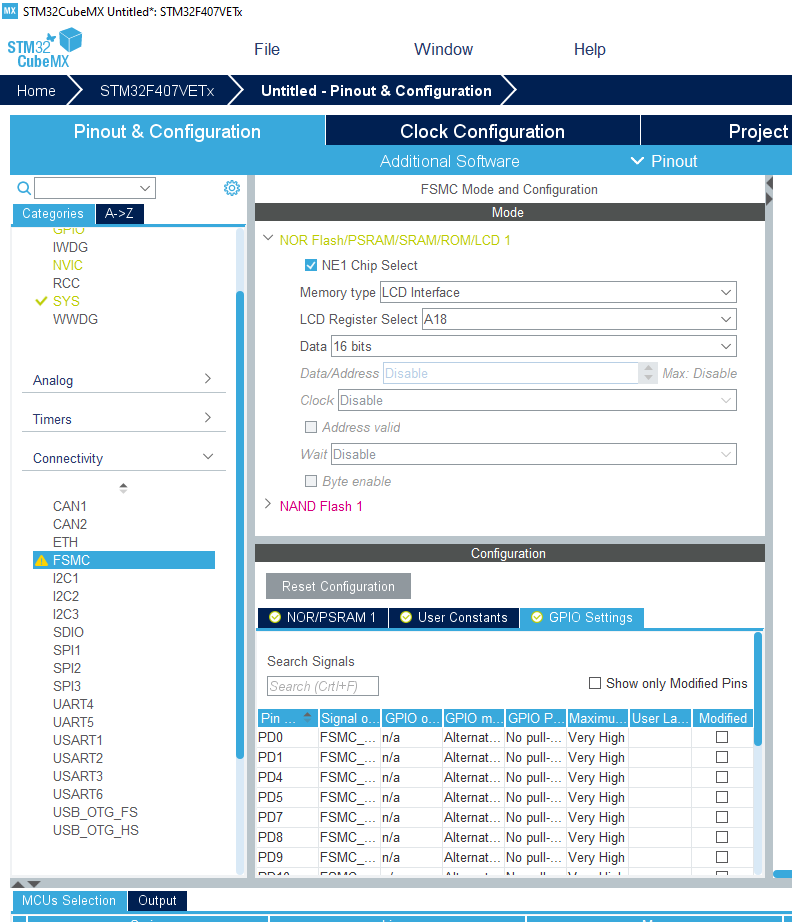

Выбираем FSMC и настраиваем
Включаем пункт - NE1 Chip Select
В появившихся дополнительных пунктах выбираем:
Memory tipe - LCD Interface
LCD Register Select - A18
Data - 16 bits

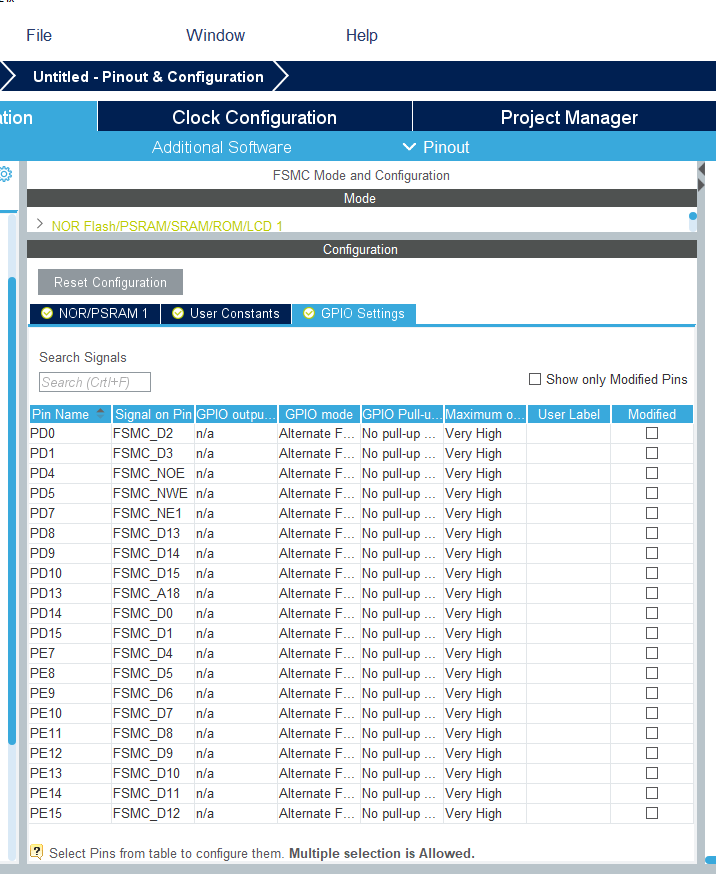

После выбора начальных данных - автоматически установятся пины (их можно сверить по схеме если необходимо)
Все FSMC мы настроили.
Перейдем к настройке:
выхода порта РВ1 для подсветки ili9325 (т.к. будем управлять яркостью - значит PWM)
выхода порта PA7 светодиод установленный на плате
выхода PE2 порта для DS18b20

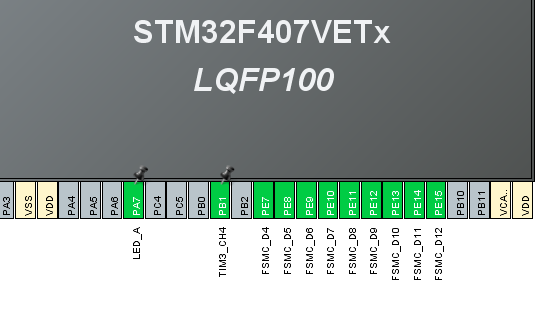

Добавим им названия.
РА7 - LED_A - Output, PB1 - TIM3_CH4 ,
PE2- DS18b20 - Output

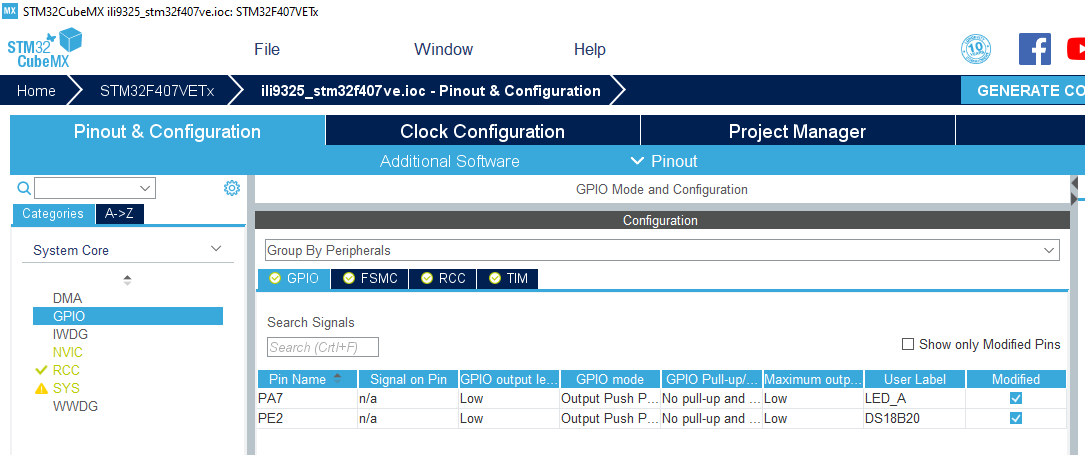

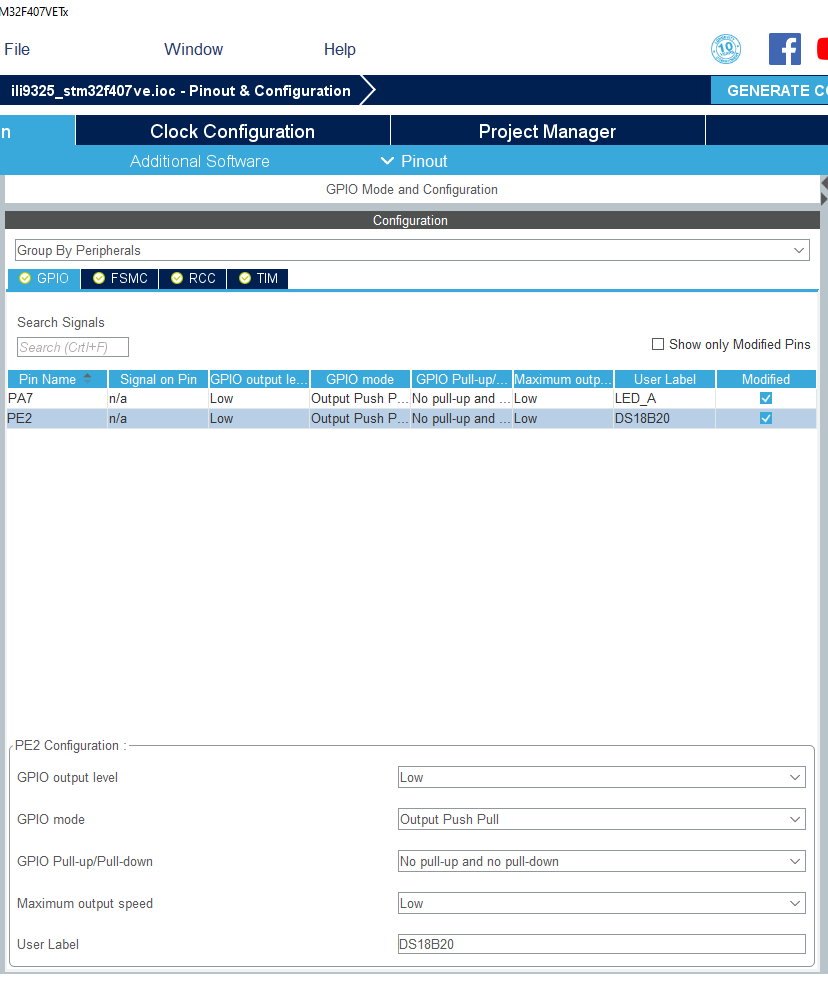

Настройка каждого порта будет следующая (по портам PA7 и PE2 сложностей ни каких..)

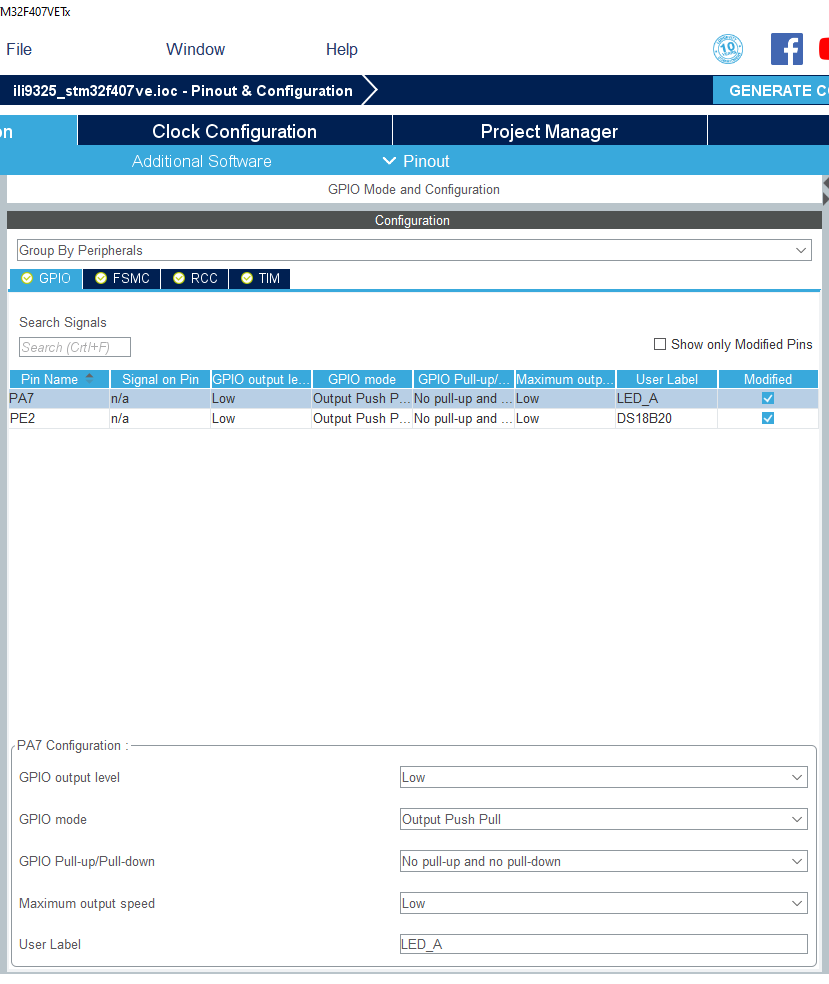

Порт PA7
Порт PE2

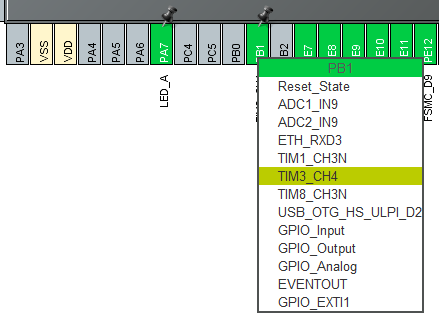

PB1 - TIM3_CH4
Так как есть желание не просто включать или выключать подсветку ili9325 , а регулировать яркость то необходимо использовать PWM. Если используем PWM значит необходим таймер. Если мы посмотрим какие еще функции можно организовать на PB1 то увидим .. в этом месте обычно вставляю кусок текста из документации ... но у нас есть CubeMX и мы просто посмотрим на картинку
Из таймеров можно выбрать
TIM1_CH3N - таймер 1 канал 3
TM3_CH4 - таймер 3 канал 4
TIM8_CH3N - таймер 8 канал 3
Я выбрал средний TM3_CH4 - таймер 3 канал 4.

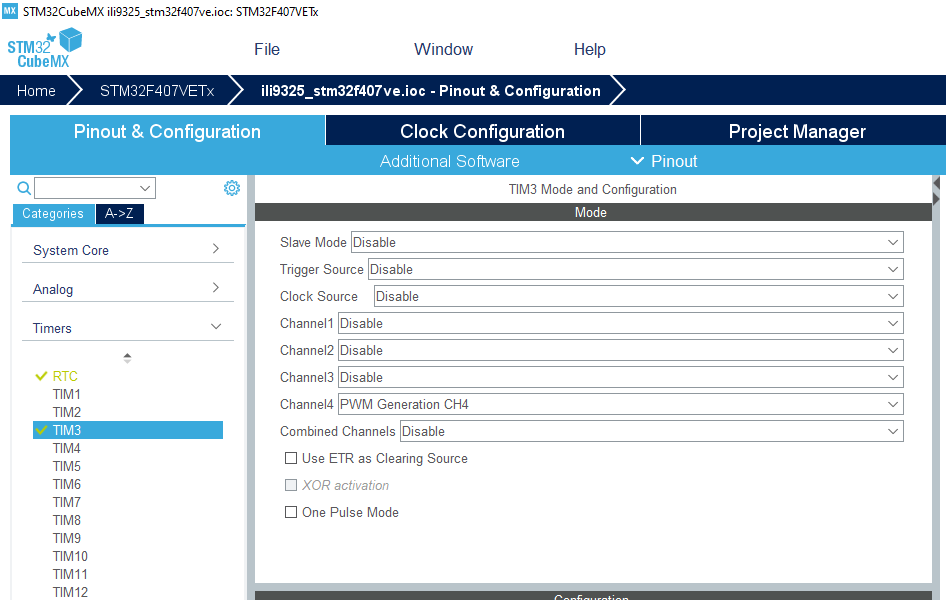

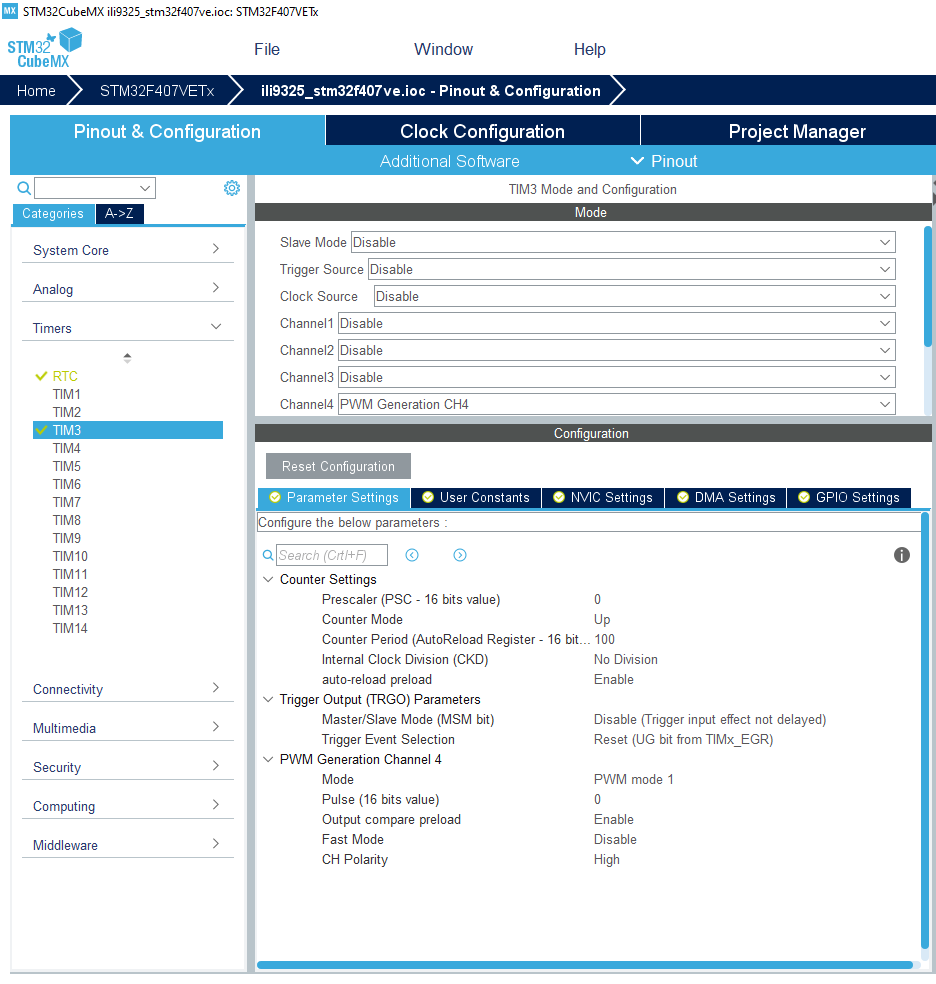

И соответственно его настройки будут следующие:
Верхняя часть настроек
Нижняя часть настроек
Единственное где возникает вопрос
Я не задавал т.к. по умолчанию берется системная частота.
На этом с портами все перейдем к системным настройкам

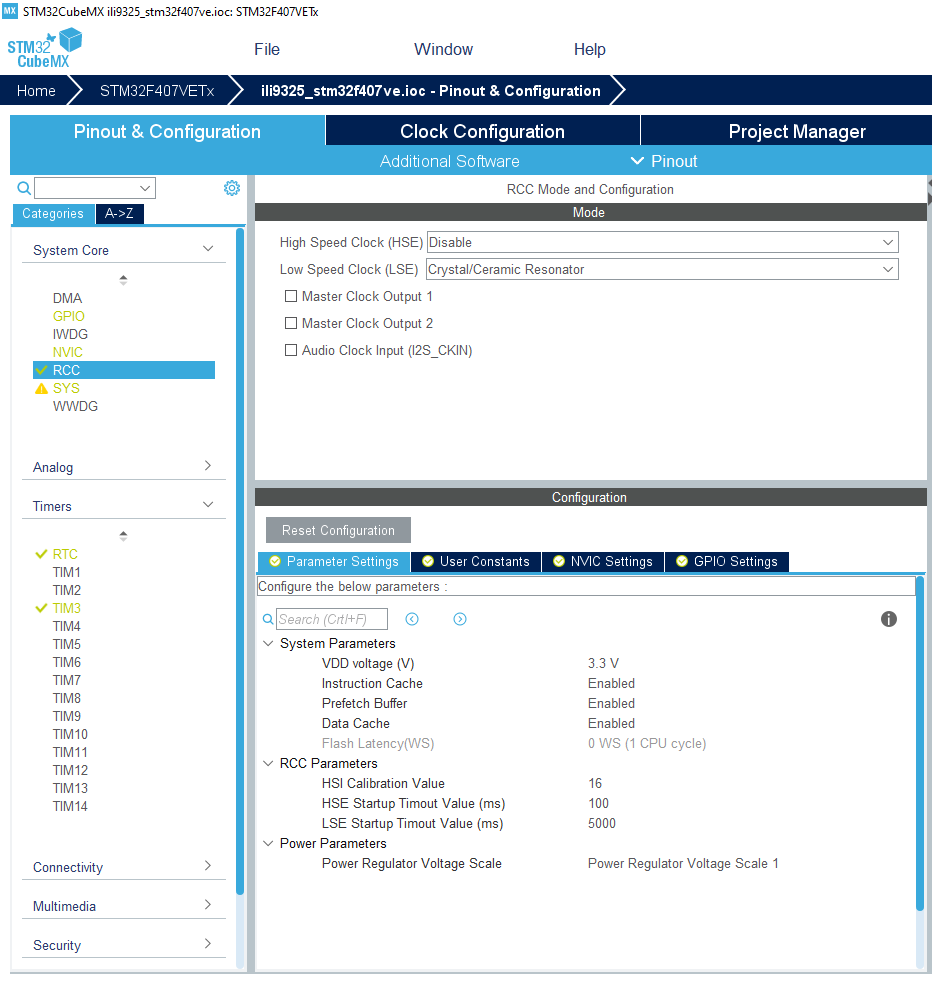

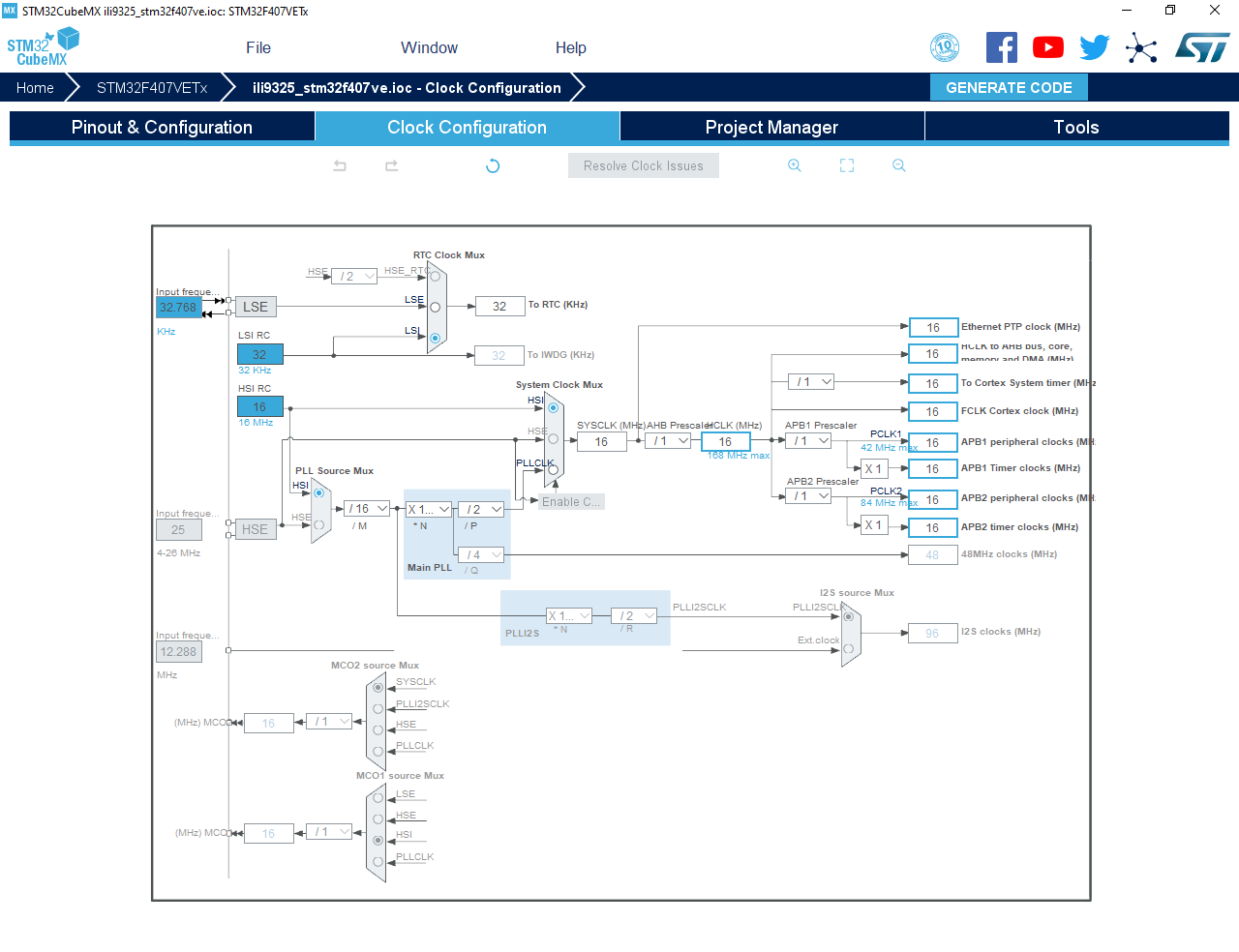

Clock Configuration
Внутренний кварц на 16 000 000 Гц
Единственное .. я подключил еще RTC ... зачем не знаю .. пригодиться. Батарейка на плате установлена. Пусть считает. Будет время часы сделаем .. но это позже..
На всякий случай конфигурация RTC с внешним кварцем на 32768.
Все с настройками микроконтроллера можно закончить.

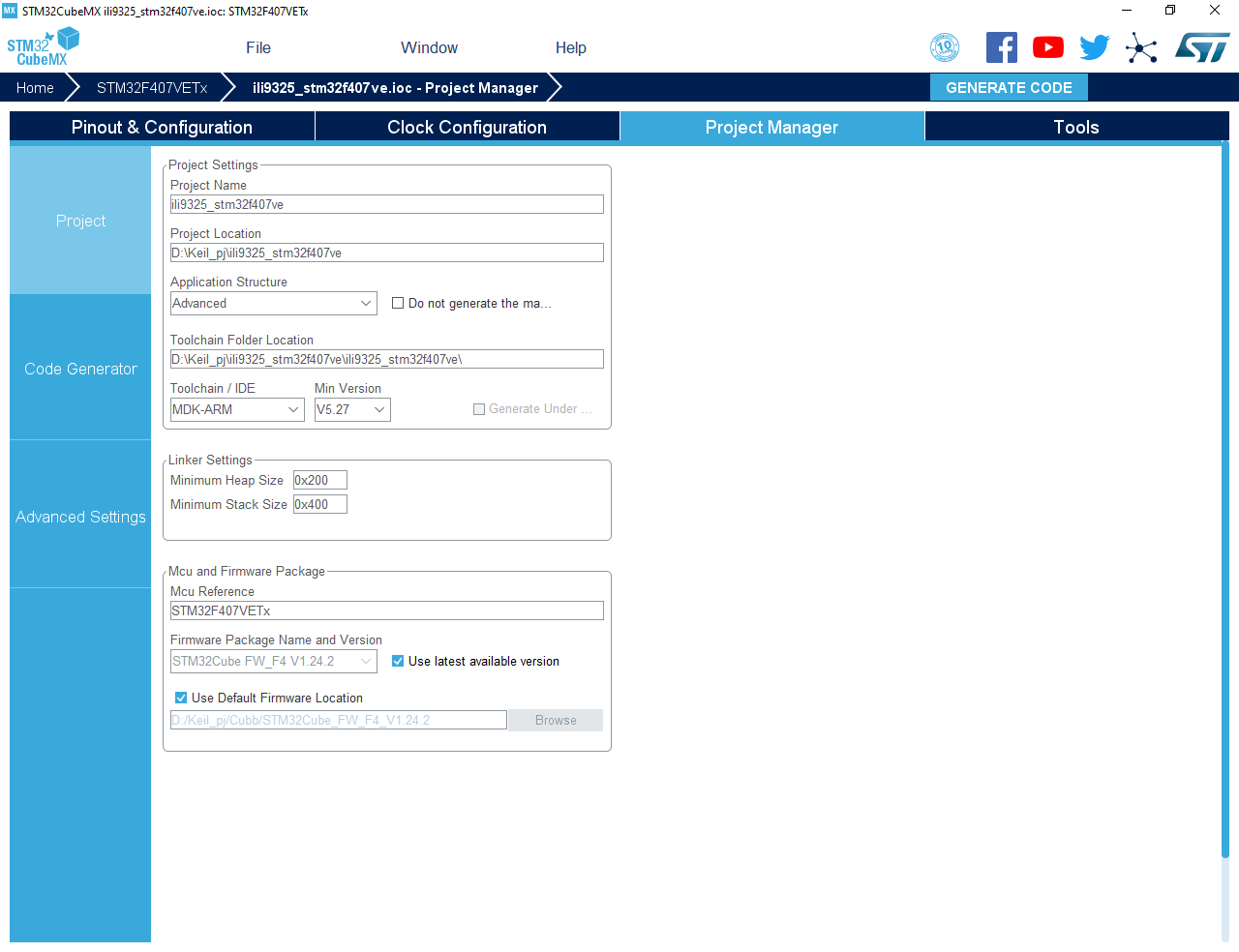

Переходим на вкладку Project Manager
Как у меня см. выше. Как и куда сохранять вам - смотрите сами.

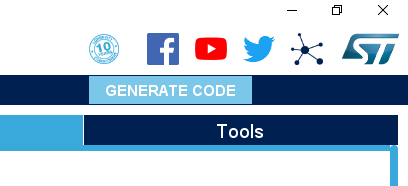

Если все заполнили - жмем GENERATE CODE
Когда будет создан код - будет предложено открыть KEIL и начать работу ... это и сделаем
НО сначала .. если у кого-то не получается создать проект в CubeMX можно скачать мой. Это проект созданный в CubeMx (только настройки для начала работы в Keil) - ссылка на скачивание
Проект будем создавать в Keil uVision5 версии V5.29.0.0.

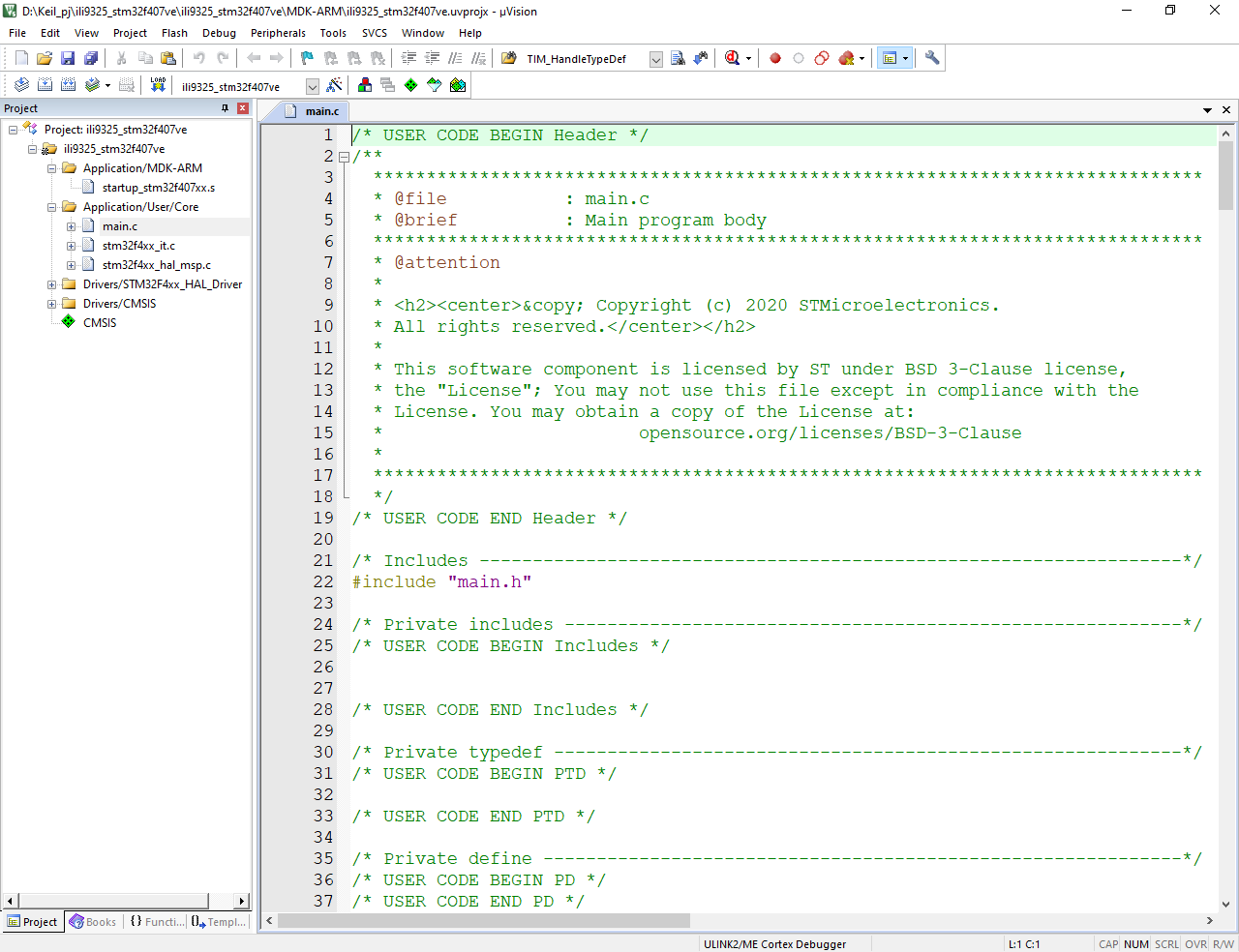

После открытия Keil с проектом из CubeMx попадаем в главное окно
Для начала работы с TFT ili9325 на понадобиться добавить в проект файлы.
Это файлы
ili9325.h
ili9325.c
ds18b20.h
ds18b20.с
AsciiLib.h
AsciiLib.с

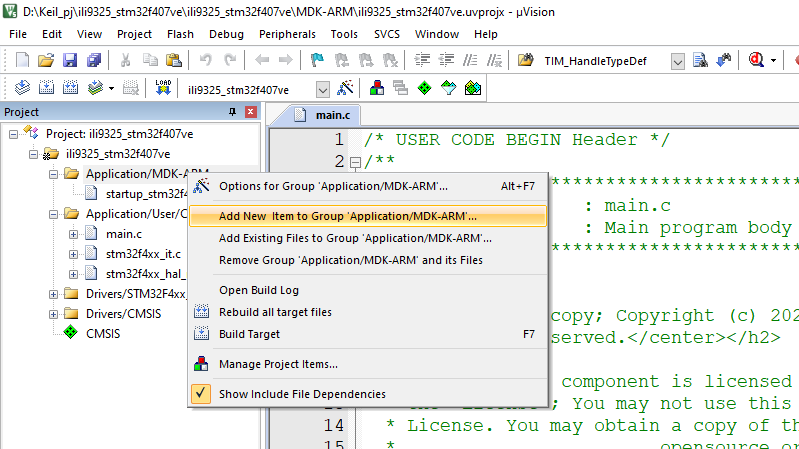

Приступим к созданию файлов и наполнению их содержимым.
Обратите внимание куда сохраняете файла.
Я выбрал пути сохранения исходя из созданного проекта
Файлы с расширением *.h в директорию Inc
Файлы с расширением *.с в директорию

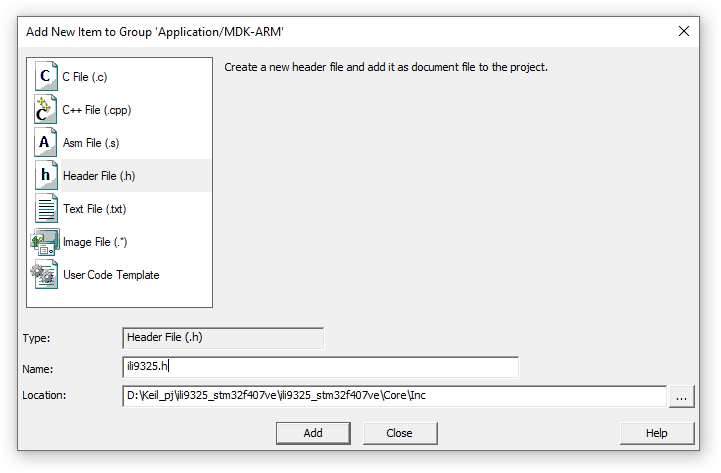

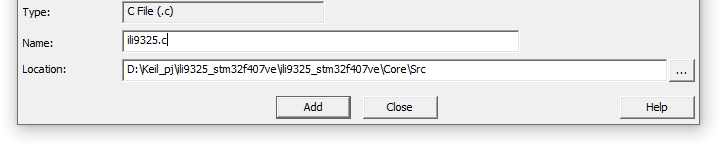

После нажатия Add

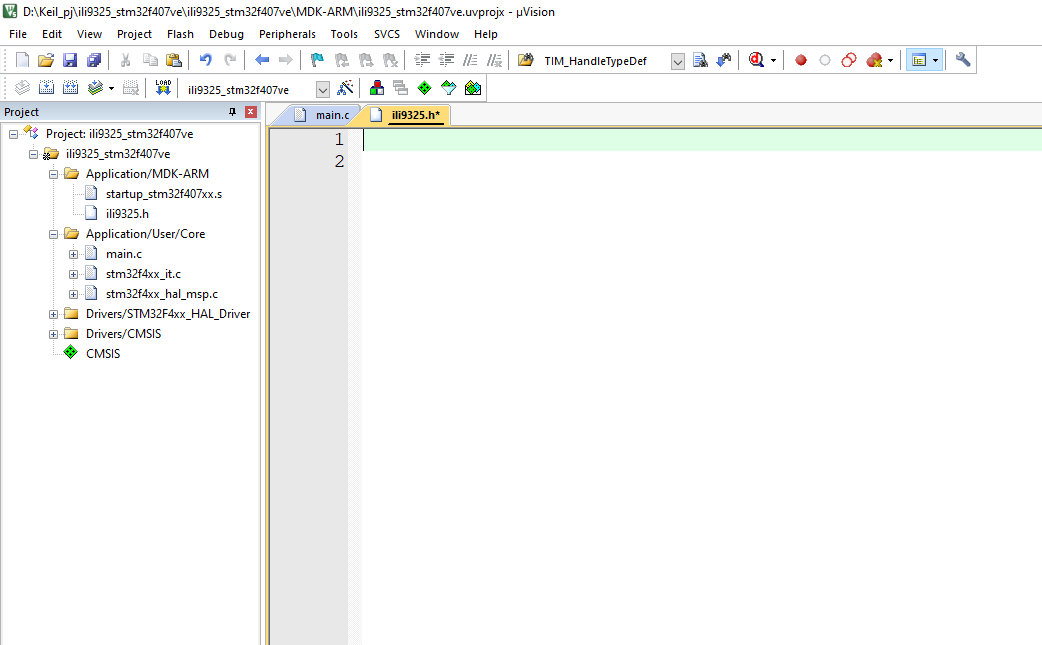

Открывается ..
Наполняем его содержимым
Начало файла ili9325.h
**********************************************************************
#ifndef __GLCD_H
#define __GLCD_H
#include "stm32f4xx.h"
extern uint16_t DeviceCode;
extern uint16_t ak;
/* LCD Registers */
#define R0 0x00
#define R1 0x01
#define R2 0x02
#define R3 0x03
#define R4 0x04
#define R5 0x05
#define R6 0x06
#define R7 0x07
#define R8 0x08
#define R9 0x09
#define R10 0x0A
#define R12 0x0C
#define R13 0x0D
#define R14 0x0E
#define R15 0x0F
#define R16 0x10
#define R17 0x11
#define R18 0x12
#define R19 0x13
#define R20 0x14
#define R21 0x15
#define R22 0x16
#define R23 0x17
#define R24 0x18
#define R25 0x19
#define R26 0x1A
#define R27 0x1B
#define R28 0x1C
#define R29 0x1D
#define R30 0x1E
#define R31 0x1F
#define R32 0x20
#define R33 0x21
#define R34 0x22
#define R36 0x24
#define R37 0x25
#define R40 0x28
#define R41 0x29
#define R43 0x2B
#define R45 0x2D
#define R48 0x30
#define R49 0x31
#define R50 0x32
#define R51 0x33
#define R52 0x34
#define R53 0x35
#define R54 0x36
#define R55 0x37
#define R56 0x38
#define R57 0x39
#define R59 0x3B
#define R60 0x3C
#define R61 0x3D
#define R62 0x3E
#define R63 0x3F
#define R64 0x40
#define R65 0x41
#define R66 0x42
#define R67 0x43
#define R68 0x44
#define R69 0x45
#define R70 0x46
#define R71 0x47
#define R72 0x48
#define R73 0x49
#define R74 0x4A
#define R75 0x4B
#define R76 0x4C
#define R77 0x4D
#define R78 0x4E
#define R79 0x4F
#define R80 0x50
#define R81 0x51
#define R82 0x52
#define R83 0x53
#define R96 0x60
#define R97 0x61
#define R106 0x6A
#define R118 0x76
#define R128 0x80
#define R129 0x81
#define R130 0x82
#define R131 0x83
#define R132 0x84
#define R133 0x85
#define R134 0x86
#define R135 0x87
#define R136 0x88
#define R137 0x89
#define R139 0x8B
#define R140 0x8C
#define R141 0x8D
#define R143 0x8F
#define R144 0x90
#define R145 0x91
#define R146 0x92
#define R147 0x93
#define R148 0x94
#define R149 0x95
#define R150 0x96
#define R151 0x97
#define R152 0x98
#define R153 0x99
#define R154 0x9A
#define R157 0x9D
#define R192 0xC0
#define R193 0xC1
#define R229 0xE5
/* LCD color */
#define White 0xFFFF
#define Black 0x0000
#define Grey 0xF7DE
#define Blue 0x001F
#define Blue2 0x051F
#define Red 0xF800
#define Magenta 0xF81F
#define Green 0x07E0
#define Cyan 0x7FFF
#define Yellow 0xFFE0
void LCD_Initializtion(void);
void LCD_Clear(uint16_t Color);
void LCD_SetPoint(uint16_t Xpos,uint16_t Ypos,uint16_t point);
void LCD_DrawLine(int x1, int y1, int x2, int y2,uint16_t bkColor);
void GUI_Text(uint16_t Xpos, uint16_t Ypos, uint8_t *str,uint16_t Color, uint16_t bkColor);
void GUI_Text_Mag(uint16_t Xpos, uint16_t Ypos, uint8_t *str,uint16_t Color, uint16_t bkColor, float magnifier);
void PutChar(unsigned short Xpos,unsigned short Ypos,unsigned char c,unsigned short charColor,unsigned short bkColor);
void LCD_SetCursor(uint16_t Xpos,uint16_t Ypos);
__inline void LCD_WriteRAM_Prepare(void);
__inline void LCD_WriteRAM(uint16_t RGB_Code);
#endif
**********************************************************************
Конец файла ili9325.h

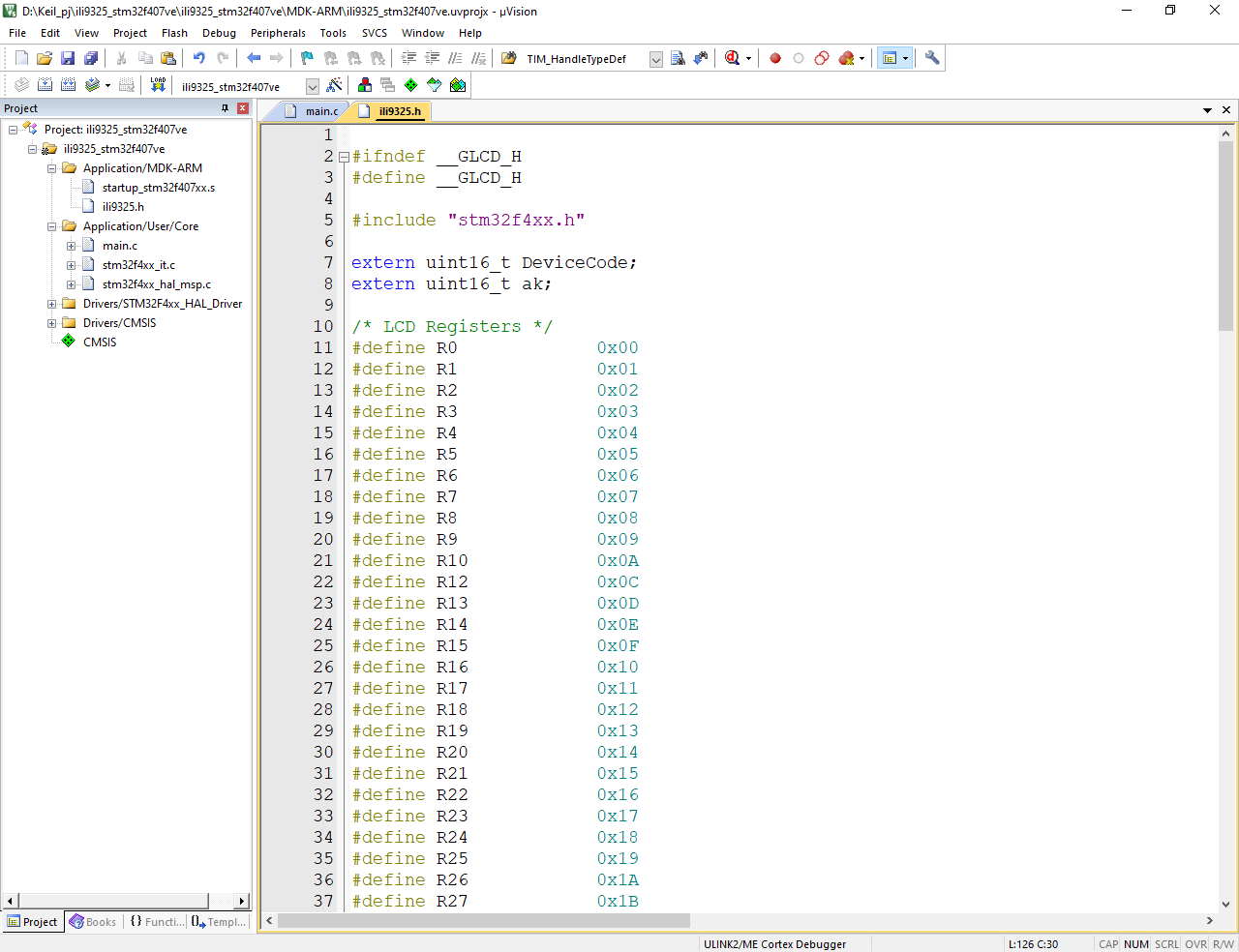

Вид после вставки
Не забываем
Пустую строчку в конце файла
И конечно же
И так последовательно дополняем проект оставшимися файлами.
Файл
ili9325.c
Начало файла ili9325.с
**********************************************************************
#include "ili9325.h"
#include "AsciiLib.h"
#include <math.h>
/* Private variables ---------------------------------------------------------*/
static uint16_t DeviceCode;
uint16_t ak;
/* Private define ------------------------------------------------------------*/
#define LCD_REG (*((volatile unsigned short *) 0x60000000)) /* RS = 0 */
#define LCD_RAM (*((volatile unsigned short *) 0x60080000)) /* RS = 1 */
static __inline void LCD_WriteReg(uint8_t LCD_Reg,uint16_t LCD_RegValue)
{
/* Write 16-bit Index, then Write Reg */
LCD_REG = LCD_Reg;
/* Write 16-bit Reg */
LCD_RAM = LCD_RegValue;
}
static __inline uint16_t LCD_ReadReg(uint8_t LCD_Reg)
{
/* Write 16-bit Index (then Read Reg) */
LCD_REG = LCD_Reg;
/* Read 16-bit Reg */
return (LCD_RAM);
}
static __inline void LCD_WriteRAM_Prepare(void)
{
LCD_REG = R34;
}
static __inline void LCD_WriteRAM(uint16_t RGB_Code)
{
/* Write 16-bit GRAM Reg */
LCD_RAM = RGB_Code;
}
void LCD_SetCursor(uint16_t Xpos,uint16_t Ypos)
{
LCD_WriteReg(0x0020,Xpos); /* Row */
LCD_WriteReg(0x0021,Ypos); /* Line */
}
// Функция определения типа LCD - мы читаем ili по 0x0 адресу (документация на ili9325)
// и если определили что это именно 9325 - проводим конфигурирование
void LCD_Initializtion()
{
DeviceCode = LCD_ReadReg(0x0000); // Определяем что это ili 9325
ak=DeviceCode; // для вывода на экран
if(DeviceCode==0x9325)
{
// Записываем в ili9235 конфигурацию где LCD_WriteReg- команда записи (адрес регистра, данные)
LCD_WriteReg(0x00e7,0x0010);
LCD_WriteReg(0x0000,0x0001);
LCD_WriteReg(0x0001,0x0100);
LCD_WriteReg(0x0002,0x0700);
LCD_WriteReg(0x0003,0x1030);
LCD_WriteReg(0x0004,0x0000);
LCD_WriteReg(0x0008,0x0207);
LCD_WriteReg(0x0009,0x0000);
LCD_WriteReg(0x000a,0x0000);
LCD_WriteReg(0x000c,0x0001);
LCD_WriteReg(0x000d,0x0000);
LCD_WriteReg(0x000f,0x0000);
LCD_WriteReg(0x0010,0x0000);
LCD_WriteReg(0x0011,0x0007);
LCD_WriteReg(0x0012,0x0000);
LCD_WriteReg(0x0013,0x0000);
HAL_Delay(50);
LCD_WriteReg(0x0010,0x1590);
LCD_WriteReg(0x0011,0x0227);
HAL_Delay(50);
LCD_WriteReg(0x0012,0x009c);
HAL_Delay(50);
LCD_WriteReg(0x0013,0x1900);
LCD_WriteReg(0x0029,0x0023);
LCD_WriteReg(0x002b,0x000e);
HAL_Delay(50);
LCD_WriteReg(0x0020,0x0000);
LCD_WriteReg(0x0021,0x0000);
HAL_Delay(50);
LCD_WriteReg(0x0030,0x0007);
LCD_WriteReg(0x0031,0x0707);
LCD_WriteReg(0x0032,0x0006);
LCD_WriteReg(0x0035,0x0704);
LCD_WriteReg(0x0036,0x1f04);
LCD_WriteReg(0x0037,0x0004);
LCD_WriteReg(0x0038,0x0000);
LCD_WriteReg(0x0039,0x0706);
LCD_WriteReg(0x003c,0x0701);
LCD_WriteReg(0x003d,0x000f);
HAL_Delay(50);
LCD_WriteReg(0x0050,0x0000);
LCD_WriteReg(0x0051,0x00ef);
LCD_WriteReg(0x0052,0x0000);
LCD_WriteReg(0x0053,0x013f);
LCD_WriteReg(0x0060,0xa700);
LCD_WriteReg(0x0061,0x0001);
LCD_WriteReg(0x006a,0x0000);
LCD_WriteReg(0x0080,0x0000);
LCD_WriteReg(0x0081,0x0000);
LCD_WriteReg(0x0082,0x0000);
LCD_WriteReg(0x0083,0x0000);
LCD_WriteReg(0x0084,0x0000);
LCD_WriteReg(0x0085,0x0000);
LCD_WriteReg(0x0090,0x0010);
LCD_WriteReg(0x0092,0x0000);
LCD_WriteReg(0x0093,0x0003);
LCD_WriteReg(0x0095,0x0110);
LCD_WriteReg(0x0097,0x0000);
LCD_WriteReg(0x0098,0x0000);
LCD_WriteReg(0x0007,0x0133);
LCD_WriteReg(0x0020,0x0000);
LCD_WriteReg(0x0021,0x0000);
}
}
void LCD_Clear(uint16_t Color)
{
uint32_t index=0;
LCD_SetCursor(0,0);
LCD_WriteRAM_Prepare(); /* Prepare to write GRAM */
for(index=0;index<76800;index++)
{
LCD_RAM=Color;
}
}
void LCD_SetPoint(uint16_t Xpos,uint16_t Ypos,uint16_t point)
{
if ( ( Xpos > 239 ) ||( Ypos > 319 ) ) return;
LCD_SetCursor(Xpos,Ypos);
LCD_WriteRAM_Prepare();
LCD_WriteRAM(point);
}
// Рисуем линию
void LCD_DrawLine(int x1, int y1, int x2, int y2,uint16_t bkColor)
{
int x,y,dx,dy,Dx,Dy,e,i;
Dx=x2-x1;
Dy=y2-y1;
dx=fabs(x2-x1);
dy=fabs(y2-y1);
x=x1;
y=y1;
if(dy>dx)
{
e=-dy;
for(i=0;i<dy;i++)
{
LCD_SetPoint(x,y,bkColor);
if(Dy>=0) y++;
else y--;
e+=2*dx;
if(e>=0)
{
if(Dx>=0) x++;
else x--;
e-=2*dy;
}
}
}
else
{
e=-dx;
for(i=0;i<dx;i++)
{
LCD_SetPoint(x,y,bkColor);
if(Dx>=0) x++;
else x--;
e+=2*dy;
if(e>=0)
{
if(Dy>=0) y++;
else y--;
e-=2*dx;
}
}
}
}
void PutChar(unsigned short Xpos,unsigned short Ypos,unsigned char c,unsigned short charColor,unsigned short bkColor)
{
unsigned short i=0;
unsigned short j=0;
unsigned char buffer[16];
unsigned char tmp_char=0;
GetASCIICode(buffer,c);
for (i=0;i<16;i++)
{
tmp_char=buffer[i];
for (j=0;j<8;j++)
{
if ( ((tmp_char >> (7-j)) & 0x01) == 0x01)
{
LCD_SetPoint(Xpos+j,Ypos+i,charColor);
}
else
{
LCD_SetPoint(Xpos+j,Ypos+i,bkColor);
}
}
}
}
void GUI_Text(uint16_t Xpos, uint16_t Ypos, uint8_t *str,uint16_t Color, uint16_t bkColor)
{
uint8_t TempChar;
do
{
TempChar=*str++;
PutChar(Xpos,Ypos,TempChar,Color,bkColor);
if (Xpos<232)
{
Xpos+=8;
}
else if (Ypos<304)
{
Xpos=0;
Ypos+=16;
}
else
{
Xpos=0;
Ypos=0;
}
}
while (*str!=0);
}
**********************************************************************
Конец файла ili9325.с
ds18b20.h
Начало файла ds18b20.h
**********************************************************************
#ifndef DS18B20_H_
#define DS18B20_H_
#include "stm32f4xx.h"
#include <string.h>
#include <stdlib.h>
#include <stdint.h>
#define SKIP_ROM 0
#define NO_SKIP_ROM 1
#define RESOLUTION_9BIT 0x1F
#define RESOLUTION_10BIT 0x3F
#define RESOLUTION_11BIT 0x5F
#define RESOLUTION_12BIT 0x7F
uint8_t ds18b20_init(uint8_t mode);
void ds18b20_MeasureTemperCmd(uint8_t mode, uint8_t DevNum);
void ds18b20_ReadStratcpad(uint8_t mode, uint8_t *Data, uint8_t DevNum);
uint8_t ds18b20_GetSign(uint16_t dt);
float ds18b20_Convert(uint16_t dt);
void red_ds18b20_init(void);
#endif /* DS18B20_H_ */
**********************************************************************
Конец файла ds18b20.h
ds18b20.с
Начало файла ds18b20.c
**********************************************************************
#include "ds18b20.h"
#include "main.h"
#define DWT_CYCCNT *(volatile unsigned long *)0xE0001004
#define DWT_CONTROL *(volatile unsigned long *)0xE0001000
#define SCB_DEMCR *(volatile unsigned long *)0xE000EDFC
uint8_t status;
void delay_us(uint32_t us) // Микро секунды 10-6
{
int32_t us_count_tick = us * (SystemCoreClock/1000000);
//разрешаем использовать счётчик
SCB_DEMCR |= CoreDebug_DEMCR_TRCENA_Msk;
//обнуляем значение счётного регистра
DWT_CYCCNT = 0;
//запускаем счётчик
DWT_CONTROL |= DWT_CTRL_CYCCNTENA_Msk;
while(DWT_CYCCNT < us_count_tick);
//останавливаем счётчик
DWT_CONTROL &= ~DWT_CTRL_CYCCNTENA_Msk;
}
void red_ds18b20_init(void)
{
status = ds18b20_init(SKIP_ROM);
}
uint8_t ds18b20_Reset(void)
{
uint16_t status;
HAL_GPIO_WritePin(GPIOE, GPIO_PIN_2, GPIO_PIN_RESET);//Устанавливаем на ножке PE1 - "0"
delay_us(485);// Задерживаемся на 485 микросекунд
HAL_GPIO_WritePin(GPIOE, GPIO_PIN_2, GPIO_PIN_SET); //Устанавливаем на ножке PE1 - "1"
delay_us(65);// Задерживаемся на 65 микросекунд
status = GPIOE->IDR & GPIO_IDR_IDR_2;//Проверяем ответила ли DS18b20 на шине
delay_us(485);// Задерживаемся на 485 микросекунд
return (status ? 1 : 0);//Возвращаем результат
}
//--------------------------------------------------
uint8_t ds18b20_ReadBit(void)
{
uint8_t bit = 0;
HAL_GPIO_WritePin(GPIOE, GPIO_PIN_2, GPIO_PIN_RESET);// Устанавливаем на ножке PE1 - "0"
delay_us(2);// Задерживаемся на 2 микросекунды
HAL_GPIO_WritePin(GPIOE, GPIO_PIN_2, GPIO_PIN_SET);// Устанавливаем на ножке PE1 - "1"
delay_us(13);// Задерживаемся на 13 микросекунды
bit = (GPIOE->IDR & GPIO_IDR_IDR_2 ? 1 : 0);//Проверяем ответила ли DS18b20 на шине
delay_us(45);// Задерживаемся на 45 микросекунд
return bit;
}
//-----------------------------------------------
uint8_t ds18b20_ReadByte(void)
{
uint8_t data = 0;
for (uint8_t i = 0; i <= 7; i++)
data += ds18b20_ReadBit() << i;
return data;
}
//-----------------------------------------------
void ds18b20_WriteBit(uint8_t bit)
{
HAL_GPIO_WritePin(GPIOE, GPIO_PIN_2, GPIO_PIN_RESET);// Устанавливаем на ножке PE1 - "0"
delay_us(bit ? 3 : 65); //65
HAL_GPIO_WritePin(GPIOE, GPIO_PIN_2, GPIO_PIN_SET);// Устанавливаем на ножке PE1 - "1"
delay_us(bit ? 65 : 3); ///65
}
//-----------------------------------------------
void ds18b20_WriteByte(uint8_t dt)
{
for (uint8_t i = 0; i < 8; i++)
{
ds18b20_WriteBit(dt >> i & 1);
delay_us(5);
}
}
//----------------------------------------------------------
uint8_t ds18b20_init(uint8_t mode)
{
if(ds18b20_Reset()) return 1;
if(mode==SKIP_ROM)
{
ds18b20_WriteByte(0xCC);
//WRITE SCRATCHPAD
ds18b20_WriteByte(0x4E);
//TH REGISTER 100 градусов
ds18b20_WriteByte(0x64);
//TL REGISTER - 30 градусов
ds18b20_WriteByte(0x9E);
//Resolution 12 bit
ds18b20_WriteByte(RESOLUTION_12BIT);
}
return 0;
}
//----------------------------------------------------------
void ds18b20_MeasureTemperCmd(uint8_t mode, uint8_t DevNum)
{
ds18b20_Reset();
if(mode==SKIP_ROM)
{
//SKIP ROM
ds18b20_WriteByte(0xCC);
}
//CONVERT T
ds18b20_WriteByte(0x44);
}
//----------------------------------------------------------
void ds18b20_ReadStratcpad(uint8_t mode, uint8_t *Data, uint8_t DevNum)
{
uint8_t i;
ds18b20_Reset();
if(mode==SKIP_ROM)
{
//SKIP ROM
ds18b20_WriteByte(0xCC);
}
//READ SCRATCHPAD
ds18b20_WriteByte(0xBE);
for(i=0;i<8;i++)
{
Data[i] = ds18b20_ReadByte();
}
}
//----------------------------------------------------------
uint8_t ds18b20_GetSign(uint16_t dt)
{
//Проверяем 11 бит
if (dt&(1<<11)) return 1;
else return 0;
}
//----------------------------------------------------------
float ds18b20_Convert(uint16_t dt)
{
float t;
t = (float) ((dt&0x07FF)>>4); // Отбросил знаковые и дробные биты
//Прибавим дробную часть
t += (float)(dt&0x000F) / 16.0f;
return t;
}
//----------------------------------------------------------
**********************************************************************
Конец файла ds18b20.c
AsciiLib.h
Начало файла AsciiLib.h
**********************************************************************
#ifndef __AsciiLib_H
#define __AsciiLib_H
#include <string.h>
#define ASCII_8X16_System
void GetASCIICode(unsigned char* pBuffer,unsigned char ASCII);
#endif
**********************************************************************
Конец файла AsciiLib.h
AsciiLib.с
Начало файла AsciiLib.c
**********************************************************************
#include "AsciiLib.h"
#ifdef ASCII_8X16_MS_Gothic
static unsigned char const AsciiLib[95][16] = {
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x00,0x00,0x18,0x18,0x00,0x00},/*"!",1*/
{0x36,0x24,0x48,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x00,0x24,0x24,0x24,0x24,0xFE,0x48,0x48,0x48,0x48,0xFC,0x48,0x48,0x48,0x48,0x00},/*"#",3*/
{0x10,0x38,0x54,0x92,0x92,0x50,0x30,0x18,0x14,0x12,0x92,0x92,0x54,0x38,0x10,0x00},/*"$",4*/
{0x00,0x62,0x92,0x94,0x94,0x68,0x08,0x10,0x20,0x2C,0x52,0x52,0x92,0x8C,0x00,0x00},/*"%",5*/
{0x00,0x30,0x48,0x48,0x48,0x48,0x30,0x20,0x54,0x94,0x88,0x88,0x94,0x62,0x00,0x00},/*"&",6*/
{0x30,0x30,0x10,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x04,0x08,0x10,0x10,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x10,0x10,0x08,0x04,0x00},/*"(",8*/
{0x40,0x20,0x10,0x10,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x10,0x10,0x20,0x40,0x00},/*")",9*/
{0x00,0x00,0x00,0x10,0x92,0x54,0x38,0x10,0x38,0x54,0x92,0x10,0x00,0x00,0x00,0x00},/*"*",10*/
{0x00,0x00,0x00,0x00,0x10,0x10,0x10,0xFE,0x10,0x10,0x10,0x00,0x00,0x00,0x00,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x10,0x20,0x00},/*",",12*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00},/*".",14*/
{0x00,0x02,0x02,0x04,0x04,0x08,0x08,0x10,0x20,0x20,0x40,0x40,0x80,0x80,0x00,0x00},/*"/",15*/
{0x00,0x30,0x48,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x48,0x30,0x00,0x00},/*"0",16*/
{0x00,0x10,0x70,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x00,0x00},/*"1",17*/
{0x00,0x30,0x48,0x84,0x84,0x04,0x08,0x08,0x10,0x20,0x20,0x40,0x80,0xFC,0x00,0x00},/*"2",18*/
{0x00,0x30,0x48,0x84,0x84,0x04,0x08,0x30,0x08,0x04,0x84,0x84,0x48,0x30,0x00,0x00},/*"3",19*/
{0x00,0x08,0x08,0x18,0x18,0x28,0x28,0x48,0x48,0x88,0xFC,0x08,0x08,0x08,0x00,0x00},/*"4",20*/
{0x00,0xFC,0x80,0x80,0x80,0xB0,0xC8,0x84,0x04,0x04,0x04,0x84,0x48,0x30,0x00,0x00},/*"5",21*/
{0x00,0x30,0x48,0x84,0x84,0x80,0xB0,0xC8,0x84,0x84,0x84,0x84,0x48,0x30,0x00,0x00},/*"6",22*/
{0x00,0xFC,0x04,0x04,0x08,0x08,0x08,0x10,0x10,0x10,0x20,0x20,0x20,0x20,0x00,0x00},/*"7",23*/
{0x00,0x30,0x48,0x84,0x84,0x84,0x48,0x30,0x48,0x84,0x84,0x84,0x48,0x30,0x00,0x00},/*"8",24*/
{0x00,0x30,0x48,0x84,0x84,0x84,0x84,0x4C,0x34,0x04,0x84,0x84,0x48,0x30,0x00,0x00},/*"9",25*/
{0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x30,0x30,0x10,0x20,0x00},/*";",27*/
{0x00,0x00,0x04,0x08,0x10,0x20,0x40,0x80,0x40,0x20,0x10,0x08,0x04,0x00,0x00,0x00},/*"<",28*/
{0x00,0x00,0x00,0x00,0x00,0x7C,0x00,0x00,0x00,0x7C,0x00,0x00,0x00,0x00,0x00,0x00},/*"=",29*/
{0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x04,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00},/*">",30*/
{0x00,0x30,0x48,0x84,0x84,0x04,0x08,0x10,0x20,0x20,0x00,0x00,0x30,0x30,0x00,0x00},/*"?",31*/
{0x00,0x38,0x44,0x82,0x9A,0xAA,0xAA,0xAA,0xAA,0xAA,0x9C,0x80,0x42,0x3C,0x00,0x00},/*"@",32*/
{0x00,0x10,0x10,0x28,0x28,0x28,0x28,0x44,0x44,0x44,0x7C,0x82,0x82,0x82,0x00,0x00},/*"A",33*/
{0x00,0xF8,0x84,0x82,0x82,0x82,0x84,0xF8,0x84,0x82,0x82,0x82,0x84,0xF8,0x00,0x00},/*"B",34*/
{0x00,0x38,0x44,0x82,0x82,0x80,0x80,0x80,0x80,0x80,0x82,0x82,0x44,0x38,0x00,0x00},/*"C",35*/
{0x00,0xF8,0x84,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0x84,0xF8,0x00,0x00},/*"D",36*/
{0x00,0xFE,0x80,0x80,0x80,0x80,0x80,0xFC,0x80,0x80,0x80,0x80,0x80,0xFE,0x00,0x00},/*"E",37*/
{0x00,0xFE,0x80,0x80,0x80,0x80,0x80,0xFC,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00},/*"F",38*/
{0x00,0x38,0x44,0x82,0x82,0x80,0x80,0x80,0x8E,0x82,0x82,0x82,0x46,0x3A,0x00,0x00},/*"G",39*/
{0x00,0x82,0x82,0x82,0x82,0x82,0x82,0xFE,0x82,0x82,0x82,0x82,0x82,0x82,0x00,0x00},/*"H",40*/
{0x00,0x38,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x38,0x00,0x00},/*"I",41*/
{0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x84,0x84,0x48,0x30,0x00,0x00},/*"J",42*/
{0x00,0x82,0x84,0x84,0x88,0x90,0x90,0xA0,0xD0,0x88,0x88,0x84,0x82,0x82,0x00,0x00},/*"K",43*/
{0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0xFE,0x00,0x00},/*"L",44*/
{0x00,0x82,0x82,0xC6,0xC6,0xC6,0xC6,0xAA,0xAA,0xAA,0xAA,0x92,0x92,0x92,0x00,0x00},/*"M",45*/
{0x00,0x82,0x82,0xC2,0xC2,0xA2,0xA2,0x92,0x92,0x8A,0x8A,0x86,0x86,0x82,0x00,0x00},/*"N",46*/
{0x00,0x38,0x44,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0x44,0x38,0x00,0x00},/*"O",47*/
{0x00,0xF8,0x84,0x82,0x82,0x82,0x84,0xF8,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00},/*"P",48*/
{0x00,0x38,0x44,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0x92,0x8A,0x44,0x3A,0x00,0x00},/*"Q",49*/
{0x00,0xF8,0x84,0x82,0x82,0x82,0x84,0xF8,0x88,0x88,0x84,0x84,0x82,0x82,0x00,0x00},/*"R",50*/
{0x00,0x38,0x44,0x82,0x82,0x80,0x60,0x18,0x04,0x02,0x82,0x82,0x44,0x38,0x00,0x00},/*"S",51*/
{0x00,0xFE,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x00,0x00},/*"T",52*/
{0x00,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0x44,0x38,0x00,0x00},/*"U",53*/
{0x00,0x82,0x82,0x82,0x44,0x44,0x44,0x44,0x28,0x28,0x28,0x10,0x10,0x10,0x00,0x00},/*"V",54*/
{0x00,0x92,0x92,0x92,0x92,0xAA,0xAA,0xAA,0xAA,0x44,0x44,0x44,0x44,0x44,0x00,0x00},/*"W",55*/
{0x00,0x82,0x82,0x44,0x44,0x28,0x28,0x10,0x28,0x28,0x44,0x44,0x82,0x82,0x00,0x00},/*"X",56*/
{0x00,0x82,0x82,0x44,0x44,0x28,0x28,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x00,0x00},/*"Y",57*/
{0x00,0xFE,0x02,0x04,0x04,0x08,0x08,0x10,0x20,0x20,0x40,0x40,0x80,0xFE,0x00,0x00},/*"Z",58*/
{0x7C,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x7C,0x00},/*"[",59*/
{0x00,0x82,0x82,0x44,0x44,0x28,0x28,0x7C,0x10,0x10,0x7C,0x10,0x10,0x10,0x00,0x00},/*"\",60*/
{0x7C,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x7C,0x00},/*"]",61*/
{0x10,0x28,0x44,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF},/*"_",63*/
{0x30,0x30,0x10,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",64*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x78,0x84,0x04,0x3C,0x44,0x84,0x8C,0x76,0x00,0x00},/*"a",65*/
{0x00,0x80,0x80,0x80,0x80,0x80,0xB8,0xC4,0x82,0x82,0x82,0x82,0xC4,0xB8,0x00,0x00},/*"b",66*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x3C,0x42,0x80,0x80,0x80,0x80,0x42,0x3C,0x00,0x00},/*"c",67*/
{0x00,0x02,0x02,0x02,0x02,0x02,0x3A,0x46,0x82,0x82,0x82,0x82,0x46,0x3A,0x00,0x00},/*"d",68*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x44,0x82,0xFE,0x80,0x80,0x42,0x3C,0x00,0x00},/*"e",69*/
{0x00,0x18,0x20,0x20,0x20,0x20,0xF8,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x00,0x00},/*"f",70*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x3A,0x44,0x44,0x38,0x40,0x7C,0x82,0x82,0x7C,0x00},/*"g",71*/
{0x00,0x80,0x80,0x80,0x80,0x80,0xB8,0xC4,0x82,0x82,0x82,0x82,0x82,0x82,0x00,0x00},/*"h",72*/
{0x00,0x00,0x10,0x10,0x00,0x00,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x00,0x00},/*"i",73*/
{0x00,0x00,0x10,0x10,0x00,0x00,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x60,0x00},/*"j",74*/
{0x00,0x80,0x80,0x80,0x80,0x80,0x84,0x88,0x90,0xA0,0xD0,0x88,0x84,0x82,0x00,0x00},/*"k",75*/
{0x00,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x00,0x00},/*"l",76*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xAC,0xD2,0x92,0x92,0x92,0x92,0x92,0x92,0x00,0x00},/*"m",77*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xB8,0xC4,0x82,0x82,0x82,0x82,0x82,0x82,0x00,0x00},/*"n",78*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x44,0x82,0x82,0x82,0x82,0x44,0x38,0x00,0x00},/*"o",79*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xB8,0xC4,0x82,0x82,0x82,0xC4,0xB8,0x80,0x80,0x00},/*"p",80*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x3A,0x46,0x82,0x82,0x82,0x46,0x3A,0x02,0x02,0x00},/*"q",81*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x2E,0x30,0x20,0x20,0x20,0x20,0x20,0x20,0x00,0x00},/*"r",82*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x7C,0x82,0x80,0x60,0x1C,0x02,0x82,0x7C,0x00,0x00},/*"s",83*/
{0x00,0x00,0x20,0x20,0x20,0x20,0xF8,0x20,0x20,0x20,0x20,0x20,0x20,0x18,0x00,0x00},/*"t",84*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x82,0x82,0x82,0x82,0x82,0x82,0x46,0x3A,0x00,0x00},/*"u",85*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x82,0x82,0x44,0x44,0x28,0x28,0x10,0x10,0x00,0x00},/*"v",86*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x92,0x92,0x92,0xAA,0xAA,0x44,0x44,0x44,0x00,0x00},/*"w",87*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x82,0x44,0x28,0x10,0x10,0x28,0x44,0x82,0x00,0x00},/*"x",88*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x82,0x82,0x44,0x44,0x28,0x28,0x10,0x20,0xC0,0x00},/*"y",89*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x04,0x08,0x10,0x20,0x40,0x80,0xFE,0x00,0x00},/*"z",90*/
{0x1C,0x10,0x10,0x10,0x10,0x10,0x10,0x20,0x10,0x10,0x10,0x10,0x10,0x10,0x1C,0x00},/*"{",91*/
{0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10},/*"|",92*/
{0x70,0x10,0x10,0x10,0x10,0x10,0x10,0x08,0x10,0x10,0x10,0x10,0x10,0x10,0x70,0x00},/*"}",93*/
{0x64,0x98,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/
};
#endif
#ifdef ASCII_8X16_System
static unsigned char const AsciiLib[95][16] = {
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x00,0x18,0x3C,0x3C,0x3C,0x18,0x18,0x00,0x18,0x18,0x00,0x00,0x00,0x00},/*"!",1*/
{0x00,0x00,0x00,0x66,0x66,0x66,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x00,0x00,0x00,0x36,0x36,0x7F,0x36,0x36,0x36,0x7F,0x36,0x36,0x00,0x00,0x00,0x00},/*"#",3*/
{0x00,0x18,0x18,0x3C,0x66,0x60,0x30,0x18,0x0C,0x06,0x66,0x3C,0x18,0x18,0x00,0x00},/*"$",4*/
{0x00,0x00,0x70,0xD8,0xDA,0x76,0x0C,0x18,0x30,0x6E,0x5B,0x1B,0x0E,0x00,0x00,0x00},/*"%",5*/
{0x00,0x00,0x00,0x38,0x6C,0x6C,0x38,0x60,0x6F,0x66,0x66,0x3B,0x00,0x00,0x00,0x00},/*"&",6*/
{0x00,0x00,0x00,0x18,0x18,0x18,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0x0C,0x18,0x18,0x30,0x30,0x30,0x30,0x30,0x18,0x18,0x0C,0x00,0x00},/*"(",8*/
{0x00,0x00,0x00,0x30,0x18,0x18,0x0C,0x0C,0x0C,0x0C,0x0C,0x18,0x18,0x30,0x00,0x00},/*")",9*/
{0x00,0x00,0x00,0x00,0x00,0x36,0x1C,0x7F,0x1C,0x36,0x00,0x00,0x00,0x00,0x00,0x00},/*"*",10*/
{0x00,0x00,0x00,0x00,0x00,0x18,0x18,0x7E,0x18,0x18,0x00,0x00,0x00,0x00,0x00,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x0C,0x18,0x00,0x00},/*",",12*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x00,0x00,0x06,0x06,0x0C,0x0C,0x18,0x18,0x30,0x30,0x60,0x60,0x00,0x00,0x00},/*"/",15*/
{0x00,0x00,0x00,0x1E,0x33,0x37,0x37,0x33,0x3B,0x3B,0x33,0x1E,0x00,0x00,0x00,0x00},/*"0",16*/
{0x00,0x00,0x00,0x0C,0x1C,0x7C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x00,0x00,0x00,0x00},/*"1",17*/
{0x00,0x00,0x00,0x3C,0x66,0x66,0x06,0x0C,0x18,0x30,0x60,0x7E,0x00,0x00,0x00,0x00},/*"2",18*/
{0x00,0x00,0x00,0x3C,0x66,0x66,0x06,0x1C,0x06,0x66,0x66,0x3C,0x00,0x00,0x00,0x00},/*"3",19*/
{0x00,0x00,0x00,0x30,0x30,0x36,0x36,0x36,0x66,0x7F,0x06,0x06,0x00,0x00,0x00,0x00},/*"4",20*/
{0x00,0x00,0x00,0x7E,0x60,0x60,0x60,0x7C,0x06,0x06,0x0C,0x78,0x00,0x00,0x00,0x00},/*"5",21*/
{0x00,0x00,0x00,0x1C,0x18,0x30,0x7C,0x66,0x66,0x66,0x66,0x3C,0x00,0x00,0x00,0x00},/*"6",22*/
{0x00,0x00,0x00,0x7E,0x06,0x0C,0x0C,0x18,0x18,0x30,0x30,0x30,0x00,0x00,0x00,0x00},/*"7",23*/
{0x00,0x00,0x00,0x3C,0x66,0x66,0x76,0x3C,0x6E,0x66,0x66,0x3C,0x00,0x00,0x00,0x00},/*"8",24*/
{0x00,0x00,0x00,0x3C,0x66,0x66,0x66,0x66,0x3E,0x0C,0x18,0x38,0x00,0x00,0x00,0x00},/*"9",25*/
{0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x00,0x00,0x00,0x1C,0x1C,0x00,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x00,0x00,0x00,0x1C,0x1C,0x0C,0x18,0x00,0x00},/*";",27*/
{0x00,0x00,0x00,0x06,0x0C,0x18,0x30,0x60,0x30,0x18,0x0C,0x06,0x00,0x00,0x00,0x00},/*"<",28*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x7E,0x00,0x7E,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"=",29*/
{0x00,0x00,0x00,0x60,0x30,0x18,0x0C,0x06,0x0C,0x18,0x30,0x60,0x00,0x00,0x00,0x00},/*">",30*/
{0x00,0x00,0x00,0x3C,0x66,0x66,0x0C,0x18,0x18,0x00,0x18,0x18,0x00,0x00,0x00,0x00},/*"?",31*/
{0x00,0x00,0x00,0x7E,0xC3,0xC3,0xCF,0xDB,0xDB,0xCF,0xC0,0x7F,0x00,0x00,0x00,0x00},/*"@",32*/
{0x00,0x00,0x00,0x18,0x3C,0x66,0x66,0x66,0x7E,0x66,0x66,0x66,0x00,0x00,0x00,0x00},/*"A",33*/
{0x00,0x00,0x00,0x7C,0x66,0x66,0x66,0x7C,0x66,0x66,0x66,0x7C,0x00,0x00,0x00,0x00},/*"B",34*/
{0x00,0x00,0x00,0x3C,0x66,0x66,0x60,0x60,0x60,0x66,0x66,0x3C,0x00,0x00,0x00,0x00},/*"C",35*/
{0x00,0x00,0x00,0x78,0x6C,0x66,0x66,0x66,0x66,0x66,0x6C,0x78,0x00,0x00,0x00,0x00},/*"D",36*/
{0x00,0x00,0x00,0x7E,0x60,0x60,0x60,0x7C,0x60,0x60,0x60,0x7E,0x00,0x00,0x00,0x00},/*"E",37*/
{0x00,0x00,0x00,0x7E,0x60,0x60,0x60,0x7C,0x60,0x60,0x60,0x60,0x00,0x00,0x00,0x00},/*"F",38*/
{0x00,0x00,0x00,0x3C,0x66,0x66,0x60,0x60,0x6E,0x66,0x66,0x3E,0x00,0x00,0x00,0x00},/*"G",39*/
{0x00,0x00,0x00,0x66,0x66,0x66,0x66,0x7E,0x66,0x66,0x66,0x66,0x00,0x00,0x00,0x00},/*"H",40*/
{0x00,0x00,0x00,0x3C,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x3C,0x00,0x00,0x00,0x00},/*"I",41*/
{0x00,0x00,0x00,0x06,0x06,0x06,0x06,0x06,0x06,0x66,0x66,0x3C,0x00,0x00,0x00,0x00},/*"J",42*/
{0x00,0x00,0x00,0x66,0x66,0x6C,0x6C,0x78,0x6C,0x6C,0x66,0x66,0x00,0x00,0x00,0x00},/*"K",43*/
{0x00,0x00,0x00,0x60,0x60,0x60,0x60,0x60,0x60,0x60,0x60,0x7E,0x00,0x00,0x00,0x00},/*"L",44*/
{0x00,0x00,0x00,0x63,0x63,0x77,0x6B,0x6B,0x6B,0x63,0x63,0x63,0x00,0x00,0x00,0x00},/*"M",45*/
{0x00,0x00,0x00,0x63,0x63,0x73,0x7B,0x6F,0x67,0x63,0x63,0x63,0x00,0x00,0x00,0x00},/*"N",46*/
{0x00,0x00,0x00,0x3C,0x66,0x66,0x66,0x66,0x66,0x66,0x66,0x3C,0x00,0x00,0x00,0x00},/*"O",47*/
{0x00,0x00,0x00,0x7C,0x66,0x66,0x66,0x7C,0x60,0x60,0x60,0x60,0x00,0x00,0x00,0x00},/*"P",48*/
{0x00,0x00,0x00,0x3C,0x66,0x66,0x66,0x66,0x66,0x66,0x66,0x3C,0x0C,0x06,0x00,0x00},/*"Q",49*/
{0x00,0x00,0x00,0x7C,0x66,0x66,0x66,0x7C,0x6C,0x66,0x66,0x66,0x00,0x00,0x00,0x00},/*"R",50*/
{0x00,0x00,0x00,0x3C,0x66,0x60,0x30,0x18,0x0C,0x06,0x66,0x3C,0x00,0x00,0x00,0x00},/*"S",51*/
{0x00,0x00,0x00,0x7E,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x00,0x00,0x00,0x00},/*"T",52*/
{0x00,0x00,0x00,0x66,0x66,0x66,0x66,0x66,0x66,0x66,0x66,0x3C,0x00,0x00,0x00,0x00},/*"U",53*/
{0x00,0x00,0x00,0x66,0x66,0x66,0x66,0x66,0x66,0x66,0x3C,0x18,0x00,0x00,0x00,0x00},/*"V",54*/
{0x00,0x00,0x00,0x63,0x63,0x63,0x6B,0x6B,0x6B,0x36,0x36,0x36,0x00,0x00,0x00,0x00},/*"W",55*/
{0x00,0x00,0x00,0x66,0x66,0x34,0x18,0x18,0x2C,0x66,0x66,0x66,0x00,0x00,0x00,0x00},/*"X",56*/
{0x00,0x00,0x00,0x66,0x66,0x66,0x66,0x3C,0x18,0x18,0x18,0x18,0x00,0x00,0x00,0x00},/*"Y",57*/
{0x00,0x00,0x00,0x7E,0x06,0x06,0x0C,0x18,0x30,0x60,0x60,0x7E,0x00,0x00,0x00,0x00},/*"Z",58*/
{0x00,0x00,0x00,0x3C,0x30,0x30,0x30,0x30,0x30,0x30,0x30,0x30,0x30,0x30,0x3C,0x00},/*"[",59*/
{0x00,0x00,0x00,0x60,0x60,0x30,0x30,0x18,0x18,0x0C,0x0C,0x06,0x06,0x00,0x00,0x00},/*"\",60*/
{0x00,0x00,0x00,0x3C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x3C,0x00},/*"]",61*/
{0x00,0x18,0x3C,0x66,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00},/*"_",63*/
{0x00,0x00,0x00,0x18,0x18,0x18,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",64*/
{0x00,0x00,0x00,0x00,0x00,0x3C,0x06,0x06,0x3E,0x66,0x66,0x3E,0x00,0x00,0x00,0x00},/*"a",65*/
{0x00,0x00,0x00,0x60,0x60,0x7C,0x66,0x66,0x66,0x66,0x66,0x7C,0x00,0x00,0x00,0x00},/*"b",66*/
{0x00,0x00,0x00,0x00,0x00,0x3C,0x66,0x60,0x60,0x60,0x66,0x3C,0x00,0x00,0x00,0x00},/*"c",67*/
{0x00,0x00,0x00,0x06,0x06,0x3E,0x66,0x66,0x66,0x66,0x66,0x3E,0x00,0x00,0x00,0x00},/*"d",68*/
{0x00,0x00,0x00,0x00,0x00,0x3C,0x66,0x66,0x7E,0x60,0x60,0x3C,0x00,0x00,0x00,0x00},/*"e",69*/
{0x00,0x00,0x00,0x1E,0x30,0x30,0x30,0x7E,0x30,0x30,0x30,0x30,0x00,0x00,0x00,0x00},/*"f",70*/
{0x00,0x00,0x00,0x00,0x00,0x3E,0x66,0x66,0x66,0x66,0x66,0x3E,0x06,0x06,0x7C,0x00},/*"g",71*/
{0x00,0x00,0x00,0x60,0x60,0x7C,0x66,0x66,0x66,0x66,0x66,0x66,0x00,0x00,0x00,0x00},/*"h",72*/
{0x00,0x00,0x18,0x18,0x00,0x78,0x18,0x18,0x18,0x18,0x18,0x7E,0x00,0x00,0x00,0x00},/*"i",73*/
{0x00,0x00,0x0C,0x0C,0x00,0x3C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x78,0x00},/*"j",74*/
{0x00,0x00,0x00,0x60,0x60,0x66,0x66,0x6C,0x78,0x6C,0x66,0x66,0x00,0x00,0x00,0x00},/*"k",75*/
{0x00,0x00,0x00,0x78,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x7E,0x00,0x00,0x00,0x00},/*"l",76*/
{0x00,0x00,0x00,0x00,0x00,0x7E,0x6B,0x6B,0x6B,0x6B,0x6B,0x63,0x00,0x00,0x00,0x00},/*"m",77*/
{0x00,0x00,0x00,0x00,0x00,0x7C,0x66,0x66,0x66,0x66,0x66,0x66,0x00,0x00,0x00,0x00},/*"n",78*/
{0x00,0x00,0x00,0x00,0x00,0x3C,0x66,0x66,0x66,0x66,0x66,0x3C,0x00,0x00,0x00,0x00},/*"o",79*/
{0x00,0x00,0x00,0x00,0x00,0x7C,0x66,0x66,0x66,0x66,0x66,0x7C,0x60,0x60,0x60,0x00},/*"p",80*/
{0x00,0x00,0x00,0x00,0x00,0x3E,0x66,0x66,0x66,0x66,0x66,0x3E,0x06,0x06,0x06,0x00},/*"q",81*/
{0x00,0x00,0x00,0x00,0x00,0x66,0x6E,0x70,0x60,0x60,0x60,0x60,0x00,0x00,0x00,0x00},/*"r",82*/
{0x00,0x00,0x00,0x00,0x00,0x3E,0x60,0x60,0x3C,0x06,0x06,0x7C,0x00,0x00,0x00,0x00},/*"s",83*/
{0x00,0x00,0x00,0x30,0x30,0x7E,0x30,0x30,0x30,0x30,0x30,0x1E,0x00,0x00,0x00,0x00},/*"t",84*/
{0x00,0x00,0x00,0x00,0x00,0x66,0x66,0x66,0x66,0x66,0x66,0x3E,0x00,0x00,0x00,0x00},/*"u",85*/
{0x00,0x00,0x00,0x00,0x00,0x66,0x66,0x66,0x66,0x66,0x3C,0x18,0x00,0x00,0x00,0x00},/*"v",86*/
{0x00,0x00,0x00,0x00,0x00,0x63,0x6B,0x6B,0x6B,0x6B,0x36,0x36,0x00,0x00,0x00,0x00},/*"w",87*/
{0x00,0x00,0x00,0x00,0x00,0x66,0x66,0x3C,0x18,0x3C,0x66,0x66,0x00,0x00,0x00,0x00},/*"x",88*/
{0x00,0x00,0x00,0x00,0x00,0x66,0x66,0x66,0x66,0x66,0x66,0x3C,0x0C,0x18,0xF0,0x00},/*"y",89*/
{0x00,0x00,0x00,0x00,0x00,0x7E,0x06,0x0C,0x18,0x30,0x60,0x7E,0x00,0x00,0x00,0x00},/*"z",90*/
{0x00,0x00,0x00,0x0C,0x18,0x18,0x18,0x30,0x60,0x30,0x18,0x18,0x18,0x0C,0x00,0x00},/*"{",91*/
{0x00,0x00,0x00,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x00},/*"|",92*/
{0x00,0x00,0x00,0x30,0x18,0x18,0x18,0x0C,0x06,0x0C,0x18,0x18,0x18,0x30,0x00,0x00},/*"}",93*/
{0x00,0x00,0x00,0x71,0xDB,0x8E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/
};
#endif
void GetASCIICode(unsigned char* pBuffer,unsigned char ASCII)
{
memcpy(pBuffer,AsciiLib[(ASCII - 32)] ,16);
}
**********************************************************************
Конец файла AsciiLib.c
main.c
Ниже полный листинг файла
main.с
Начало файла mai.c
/* USER CODE BEGIN Header */
/**
******************************************************************************
* @file : main.c
* @brief : Main program body
******************************************************************************
* @attention
*
* <h2><center>© Copyright (c) 2020 STMicroelectronics.
* All rights reserved.</center></h2>
*
* This software component is licensed by ST under BSD 3-Clause license,
* the "License"; You may not use this file except in compliance with the
* License. You may obtain a copy of the License at:
* opensource.org/licenses/BSD-3-Clause
*
******************************************************************************
*/
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include <ili9325.h>
#include <ds18b20.h>
/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
char str3[10];
char str1[60];
char str4[60];
char pstr[10];
unsigned char str2[60];
uint8_t dt[8];
uint16_t raw_temper;
float temper;
char c;
uint32_t i=0;
/* USER CODE END Includes */
/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */
/* USER CODE END PTD */
/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
/* USER CODE END PD */
/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */
/* USER CODE END PM */
/* Private variables ---------------------------------------------------------*/
RTC_HandleTypeDef hrtc;
TIM_HandleTypeDef htim3;
SRAM_HandleTypeDef hsram1;
/* USER CODE BEGIN PV */
/* USER CODE END PV */
/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
static void MX_GPIO_Init(void);
static void MX_FSMC_Init(void);
static void MX_TIM3_Init(void);
static void MX_RTC_Init(void);
/* USER CODE BEGIN PFP */
/* USER CODE END PFP */
/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */
/* USER CODE END 0 */
/**
* @brief The application entry point.
* @retval int
*/
int main(void)
{
/* USER CODE BEGIN 1 */
/* USER CODE END 1 */
/* MCU Configuration--------------------------------------------------------*/
/* Reset of all peripherals, Initializes the Flash interface and the Systick. */
HAL_Init();
/* USER CODE BEGIN Init */
/* USER CODE END Init */
/* Configure the system clock */
SystemClock_Config();
/* USER CODE BEGIN SysInit */
/* USER CODE END SysInit */
/* Initialize all configured peripherals */
MX_GPIO_Init();
MX_FSMC_Init();
MX_TIM3_Init();
MX_RTC_Init();
/* USER CODE BEGIN 2 */
HAL_TIM_PWM_Start(&htim3, TIM_CHANNEL_4); // запускаем Таймер 3
LCD_Initializtion(); // Инициализация ili9325
LCD_Clear(White); // Чистим экран ili9325
red_ds18b20_init(); // ds18b20
/* USER CODE END 2 */

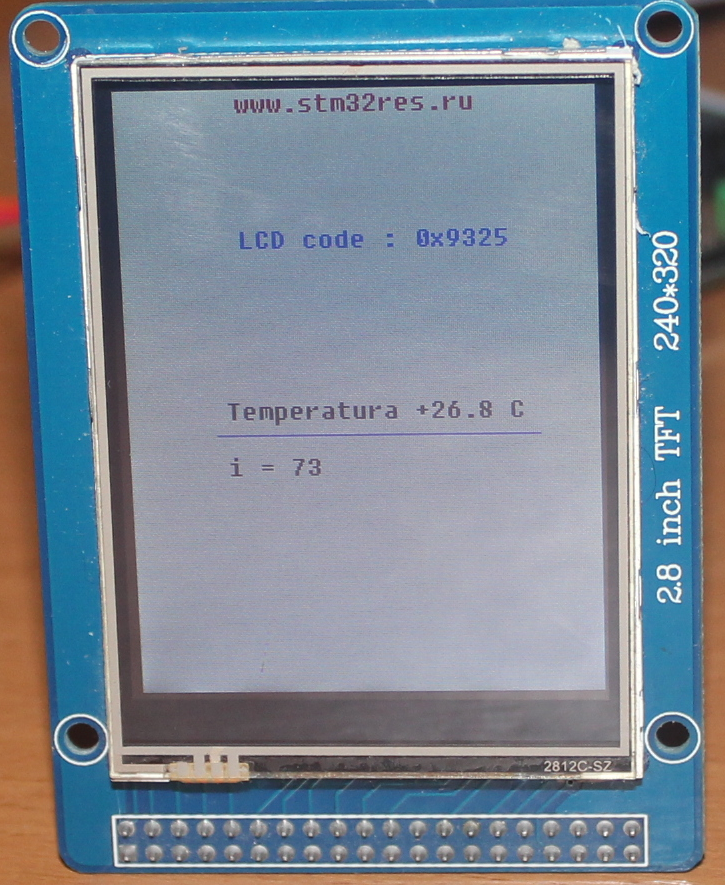

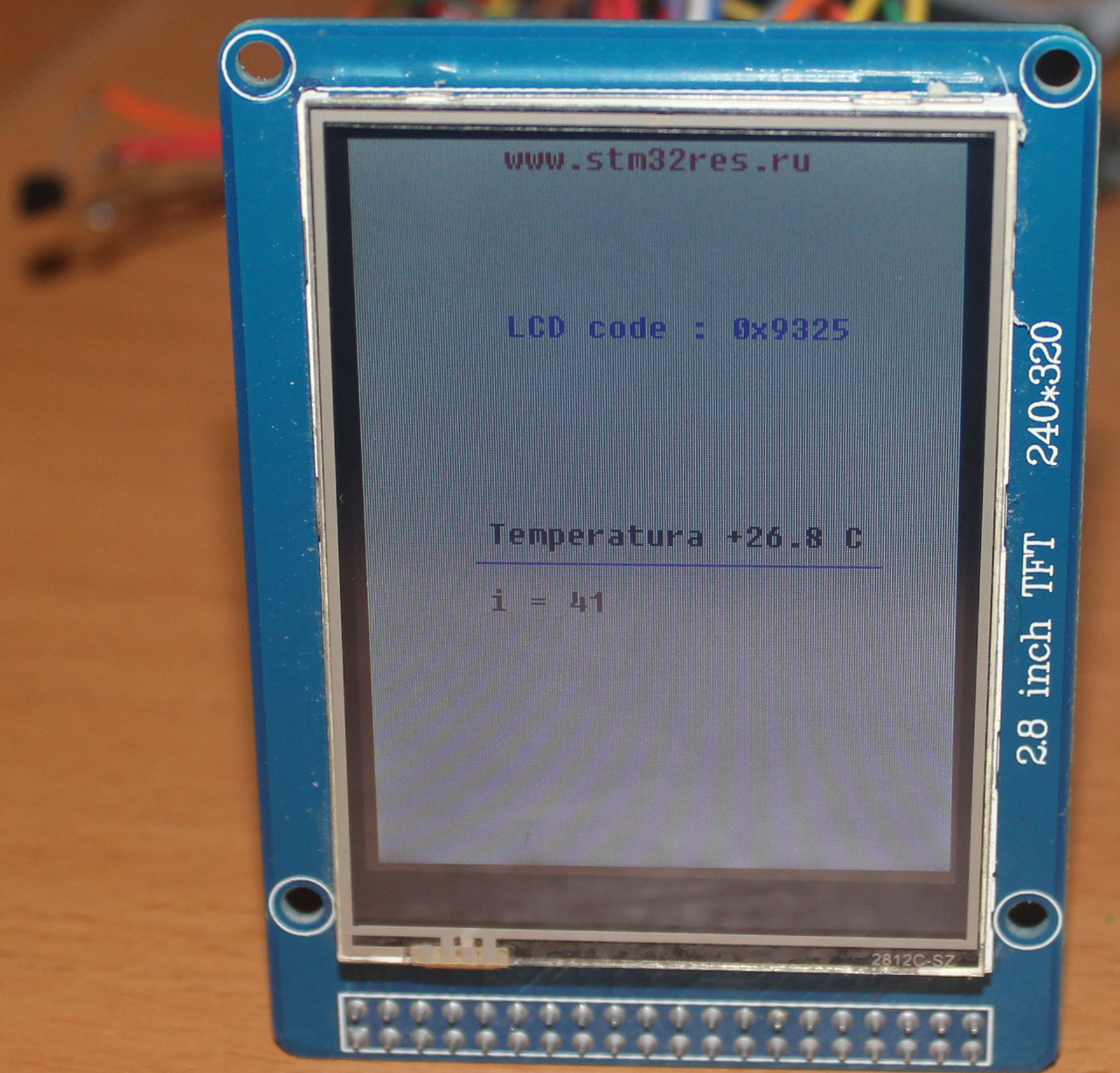

GUI_Text(60, 0, "www.stm32res.ru",Red, White);
LCD_DrawLine(45, 180, 210, 180,Blue2);
sprintf(pstr,"LCD code : 0x%04lX",(unsigned long)ak);
GUI_Text(60, 70, pstr, Blue2, White);
/* Infinite loop */
/* USER CODE BEGIN WHILE */
while (1)
{
/* USER CODE END WHILE */
// Этот код будет медленно (400 + 400 ms) прибавлять яркость экрана
if (i<=99)
{
i=i+1;
TIM3->CCR4 = i;
}
else
{
i=0;
GUI_Text(50, 190, " ", Black, White); // выводим счетчик i
}
sprintf(str4,"i = %u",i);
GUI_Text(50, 190, str4, Black, White); // выводим счетчик i
ds18b20_MeasureTemperCmd(SKIP_ROM, 0); // после этой команды ждут 800 ms
// просто моргаем светодиодом
HAL_GPIO_WritePin(GPIOA, GPIO_PIN_7, GPIO_PIN_RESET);
HAL_Delay(400);
HAL_GPIO_WritePin(GPIOA, GPIO_PIN_7, GPIO_PIN_SET);
HAL_Delay(400);
//
// ds18b20
ds18b20_ReadStratcpad(SKIP_ROM, dt, 0);
raw_temper = ((uint16_t)dt[1]<<8)|dt[0];
if(ds18b20_GetSign(raw_temper)) c='-';
else c='+';
temper = ds18b20_Convert(raw_temper);
sprintf(str1,"Temperatura %c%.1f C",c, temper);
GUI_Text(50, 160, str1, Black, White);
LCD_DrawLine(45, 180, 210, 180,Blue2);
/* USER CODE BEGIN 3 */
}
/* USER CODE END 3 */
}
/**
* @brief System Clock Configuration
* @retval None
*/
void SystemClock_Config(void)
{
RCC_OscInitTypeDef RCC_OscInitStruct = {0};
RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};
RCC_PeriphCLKInitTypeDef PeriphClkInitStruct = {0};
/** Configure the main internal regulator output voltage
*/
__HAL_RCC_PWR_CLK_ENABLE();
__HAL_PWR_VOLTAGESCALING_CONFIG(PWR_REGULATOR_VOLTAGE_SCALE1);
/** Initializes the CPU, AHB and APB busses clocks
*/
RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSI|RCC_OSCILLATORTYPE_LSI;
RCC_OscInitStruct.HSIState = RCC_HSI_ON;
RCC_OscInitStruct.HSICalibrationValue = RCC_HSICALIBRATION_DEFAULT;
RCC_OscInitStruct.LSIState = RCC_LSI_ON;
RCC_OscInitStruct.PLL.PLLState = RCC_PLL_NONE;
if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
{
Error_Handler();
}
/** Initializes the CPU, AHB and APB busses clocks
*/
RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
|RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_HSI;
RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV1;
RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;
if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_0) != HAL_OK)
{
Error_Handler();
}
PeriphClkInitStruct.PeriphClockSelection = RCC_PERIPHCLK_RTC;
PeriphClkInitStruct.RTCClockSelection = RCC_RTCCLKSOURCE_LSI;
if (HAL_RCCEx_PeriphCLKConfig(&PeriphClkInitStruct) != HAL_OK)
{
Error_Handler();
}
}
/**
* @brief RTC Initialization Function
* @param None
* @retval None
*/
static void MX_RTC_Init(void)
{
/* USER CODE BEGIN RTC_Init 0 */
/* USER CODE END RTC_Init 0 */
RTC_TimeTypeDef sTime = {0};
RTC_DateTypeDef sDate = {0};
/* USER CODE BEGIN RTC_Init 1 */
/* USER CODE END RTC_Init 1 */
/** Initialize RTC Only
*/
hrtc.Instance = RTC;
hrtc.Init.HourFormat = RTC_HOURFORMAT_24;
hrtc.Init.AsynchPrediv = 127;
hrtc.Init.SynchPrediv = 255;
hrtc.Init.OutPut = RTC_OUTPUT_DISABLE;
hrtc.Init.OutPutPolarity = RTC_OUTPUT_POLARITY_HIGH;
hrtc.Init.OutPutType = RTC_OUTPUT_TYPE_OPENDRAIN;
if (HAL_RTC_Init(&hrtc) != HAL_OK)
{
Error_Handler();
}
/* USER CODE BEGIN Check_RTC_BKUP */
/* USER CODE END Check_RTC_BKUP */
/** Initialize RTC and set the Time and Date
*/
sTime.Hours = 0x0;
sTime.Minutes = 0x0;
sTime.Seconds = 0x0;
sTime.DayLightSaving = RTC_DAYLIGHTSAVING_NONE;
sTime.StoreOperation = RTC_STOREOPERATION_RESET;
if (HAL_RTC_SetTime(&hrtc, &sTime, RTC_FORMAT_BCD) != HAL_OK)
{
Error_Handler();
}
sDate.WeekDay = RTC_WEEKDAY_THURSDAY;
sDate.Month = RTC_MONTH_JANUARY;
sDate.Date = 0x23;
sDate.Year = 0x0;
if (HAL_RTC_SetDate(&hrtc, &sDate, RTC_FORMAT_BCD) != HAL_OK)
{
Error_Handler();
}
/* USER CODE BEGIN RTC_Init 2 */
/* USER CODE END RTC_Init 2 */
}
/**
* @brief TIM3 Initialization Function
* @param None
* @retval None
*/
static void MX_TIM3_Init(void)
{
/* USER CODE BEGIN TIM3_Init 0 */
/* USER CODE END TIM3_Init 0 */
TIM_MasterConfigTypeDef sMasterConfig = {0};
TIM_OC_InitTypeDef sConfigOC = {0};
/* USER CODE BEGIN TIM3_Init 1 */
/* USER CODE END TIM3_Init 1 */
htim3.Instance = TIM3;
htim3.Init.Prescaler = 0;
htim3.Init.CounterMode = TIM_COUNTERMODE_UP;
htim3.Init.Period = 100;
htim3.Init.ClockDivision = TIM_CLOCKDIVISION_DIV1;
htim3.Init.AutoReloadPreload = TIM_AUTORELOAD_PRELOAD_ENABLE;
if (HAL_TIM_PWM_Init(&htim3) != HAL_OK)
{
Error_Handler();
}
sMasterConfig.MasterOutputTrigger = TIM_TRGO_RESET;
sMasterConfig.MasterSlaveMode = TIM_MASTERSLAVEMODE_DISABLE;
if (HAL_TIMEx_MasterConfigSynchronization(&htim3, &sMasterConfig) != HAL_OK)
{
Error_Handler();
}
sConfigOC.OCMode = TIM_OCMODE_PWM1;
sConfigOC.Pulse = 0;
sConfigOC.OCPolarity = TIM_OCPOLARITY_LOW;
sConfigOC.OCFastMode = TIM_OCFAST_DISABLE;
if (HAL_TIM_PWM_ConfigChannel(&htim3, &sConfigOC, TIM_CHANNEL_4) != HAL_OK)
{
Error_Handler();
}
/* USER CODE BEGIN TIM3_Init 2 */
/* USER CODE END TIM3_Init 2 */
HAL_TIM_MspPostInit(&htim3);
}
/**
* @brief GPIO Initialization Function
* @param None
* @retval None
*/
static void MX_GPIO_Init(void)
{
GPIO_InitTypeDef GPIO_InitStruct = {0};
/* GPIO Ports Clock Enable */
__HAL_RCC_GPIOE_CLK_ENABLE();
__HAL_RCC_GPIOC_CLK_ENABLE();
__HAL_RCC_GPIOA_CLK_ENABLE();
__HAL_RCC_GPIOB_CLK_ENABLE();
__HAL_RCC_GPIOD_CLK_ENABLE();
/*Configure GPIO pin Output Level */
HAL_GPIO_WritePin(DS18B20_GPIO_Port, DS18B20_Pin, GPIO_PIN_RESET);
/*Configure GPIO pin Output Level */
HAL_GPIO_WritePin(LED_A_GPIO_Port, LED_A_Pin, GPIO_PIN_RESET);
/*Configure GPIO pin : DS18B20_Pin */
GPIO_InitStruct.Pin = DS18B20_Pin;
GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
GPIO_InitStruct.Pull = GPIO_NOPULL;
GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
HAL_GPIO_Init(DS18B20_GPIO_Port, &GPIO_InitStruct);
/*Configure GPIO pin : LED_A_Pin */
GPIO_InitStruct.Pin = LED_A_Pin;
GPIO_InitStruct.Mode = GPIO_MODE_OUTPUT_PP;
GPIO_InitStruct.Pull = GPIO_NOPULL;
GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
HAL_GPIO_Init(LED_A_GPIO_Port, &GPIO_InitStruct);
}
/* FSMC initialization function */
static void MX_FSMC_Init(void)
{
/* USER CODE BEGIN FSMC_Init 0 */
/* USER CODE END FSMC_Init 0 */
FSMC_NORSRAM_TimingTypeDef Timing = {0};
/* USER CODE BEGIN FSMC_Init 1 */
/* USER CODE END FSMC_Init 1 */
/** Perform the SRAM1 memory initialization sequence
*/
hsram1.Instance = FSMC_NORSRAM_DEVICE;
hsram1.Extended = FSMC_NORSRAM_EXTENDED_DEVICE;
/* hsram1.Init */
hsram1.Init.NSBank = FSMC_NORSRAM_BANK1;
hsram1.Init.DataAddressMux = FSMC_DATA_ADDRESS_MUX_DISABLE;
hsram1.Init.MemoryType = FSMC_MEMORY_TYPE_SRAM;
hsram1.Init.MemoryDataWidth = FSMC_NORSRAM_MEM_BUS_WIDTH_16;
hsram1.Init.BurstAccessMode = FSMC_BURST_ACCESS_MODE_DISABLE;
hsram1.Init.WaitSignalPolarity = FSMC_WAIT_SIGNAL_POLARITY_LOW;
hsram1.Init.WrapMode = FSMC_WRAP_MODE_DISABLE;
hsram1.Init.WaitSignalActive = FSMC_WAIT_TIMING_BEFORE_WS;
hsram1.Init.WriteOperation = FSMC_WRITE_OPERATION_ENABLE;
hsram1.Init.WaitSignal = FSMC_WAIT_SIGNAL_DISABLE;
hsram1.Init.ExtendedMode = FSMC_EXTENDED_MODE_DISABLE;
hsram1.Init.AsynchronousWait = FSMC_ASYNCHRONOUS_WAIT_DISABLE;
hsram1.Init.WriteBurst = FSMC_WRITE_BURST_DISABLE;
hsram1.Init.PageSize = FSMC_PAGE_SIZE_NONE;
/* Timing */
Timing.AddressSetupTime = 1;
Timing.AddressHoldTime = 15;
Timing.DataSetupTime = 5;
Timing.BusTurnAroundDuration = 0;
Timing.CLKDivision = 16;
Timing.DataLatency = 17;
Timing.AccessMode = FSMC_ACCESS_MODE_A;
/* ExtTiming */
if (HAL_SRAM_Init(&hsram1, &Timing, NULL) != HAL_OK)
{
Error_Handler( );
}
/* USER CODE BEGIN FSMC_Init 2 */
/* USER CODE END FSMC_Init 2 */
}
/* USER CODE BEGIN 4 */
/* USER CODE END 4 */
/**
* @brief This function is executed in case of error occurrence.
* @retval None
*/
void Error_Handler(void)
{
/* USER CODE BEGIN Error_Handler_Debug */
/* User can add his own implementation to report the HAL error return state */
/* USER CODE END Error_Handler_Debug */
}
#ifdef USE_FULL_ASSERT
/**
* @brief Reports the name of the source file and the source line number
* where the assert_param error has occurred.
* @param file: pointer to the source file name
* @param line: assert_param error line source number
* @retval None
*/
void assert_failed(uint8_t *file, uint32_t line)
{
/* USER CODE BEGIN 6 */
/* User can add his own implementation to report the file name and line number,
tex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
/* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */
/************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE****/
**********************************************************************
Конец файла main.c

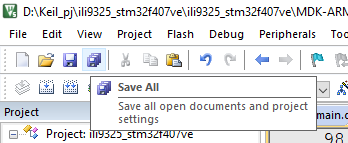

После создания файлов
Далее ..
Прежде чем прошивать микроконтроллер - следует настроить, то чем будем программировать

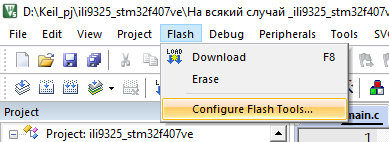

Открываем ..

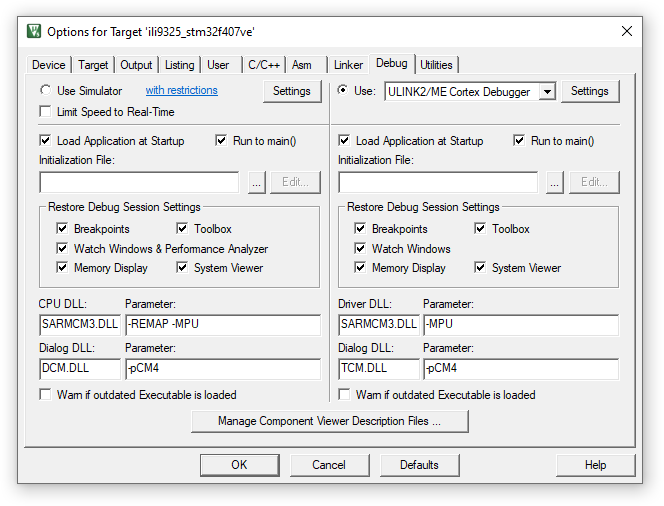

в окне
У меня установлен ULINK2 - выставлять необходимо свой программатор
Выбрали - идем в Settings

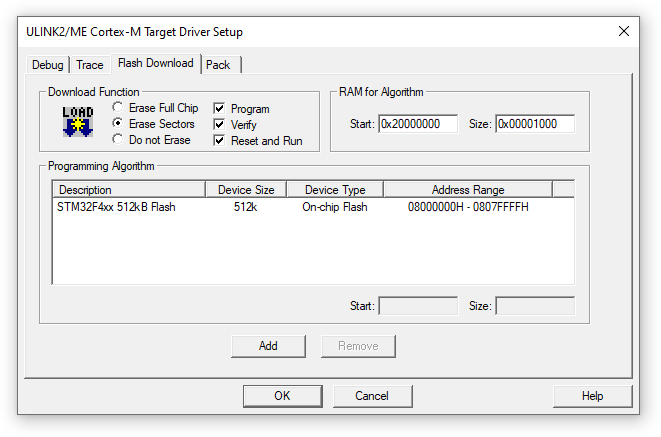

Во вкладку
И устанавливаем "галку" на Reset and Run !!!!
Результатом на ili9325 должна появиться картинка
Ура !!! Мы справились!!!
- Войдите или зарегистрируйтесь, чтобы оставлять комментарии
